1-PC BALL VALVE, 1000 PSI (Threaded)

1-PC BALL VALVE, 1000 PSI (Threaded)

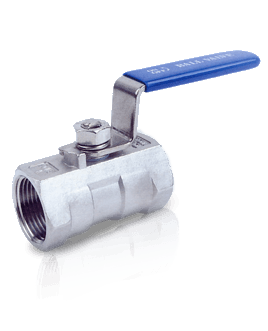

Product Name : 1-PC BALL VALVE, 1000 PSI (Threaded)
Product Description

V-1 Type

SIZE: 1/4"~2"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

Add to Inquiry
  • Pipe thread in accordance with ANSI B1.20.1 , Rp, Rc, G
  • Blow-out proof stem
  • Investment casting body and inscrewed
  • 1000 PSI(PN 63) /1500 PSI(PN100)
  • Locking device
  • Oval handle
  • Wing handle
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLEHW
1/4" 5.0 39 69.0 35.0 17
3/8" 7.2 44 79.0 36.0 21
1/2" 9.2 56.5 109.0 40.0 25.0
3/4" 12.5 59.0 109.0 42.0 32.0
1" 15.0 71.0 117.0 47.0 38.0
1-1/4" 20.0 78.0 117.0 53.0 48.0
1-1/2" 25.0 83.0 157.0 62.0 53.0
2" 32.0 100.0 155.5 67.0 64.0
