1-PC BALL VALVE, PN16 PN40 (Flanged)

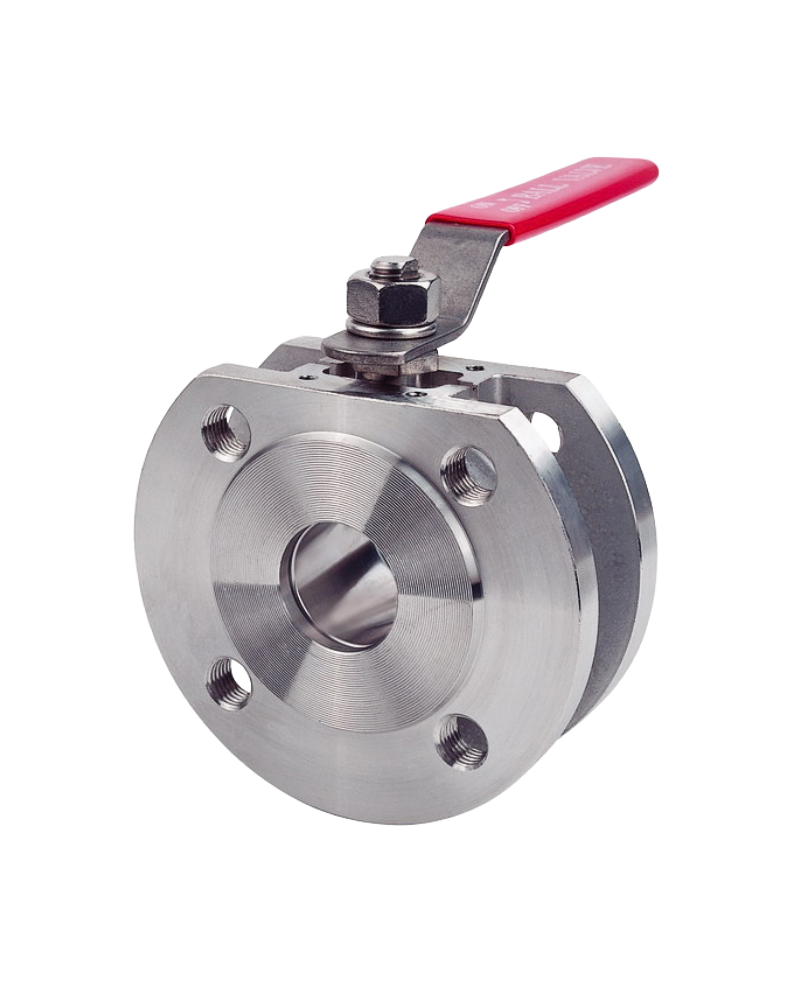

Valtec_V-1FW_PN16/PN40

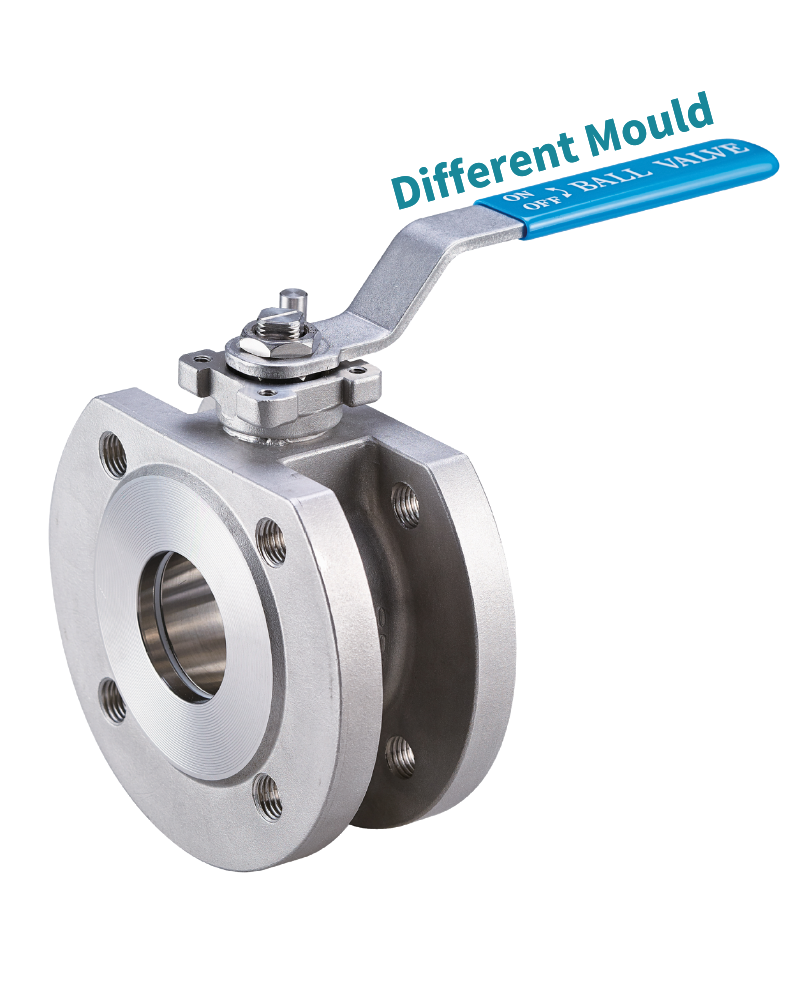

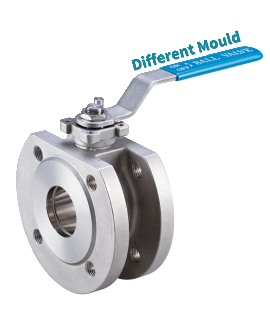

Valtec_V-1FWH_PN16/PN40
Product Name : 1-PC BALL VALVE, PN16 PN40 (Flanged)
Product Description

V-1FW-PN16/PN40 TYPE

Welcome to contact us for the technical data sheet.


SIZE:

  • 1/2"~4"

END CONNECTION:

  • Flanged: EN 1092-1 PN16 / PN40
Add to Inquiry
  • Full Port
  • Solid Ball
  • Anti-Static device
  • Fire Safe design
  • Blow-out proof stem, lever operated
  • Mounting Pad ISO 5211
  • Direct mounting pad (Different mould)
  • DIN PN16 (1/2"~6")
  • ASME Class 150 (1/2"~2")
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
