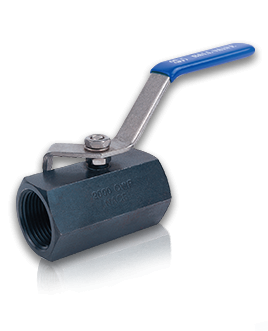

Product Name : 1-PC HEXAGONAL BALL VALVE, 2000 PSI (Threaded)
Product Description

V-1H(1000)/V-1HC(2000)TYPE

SIZE: 1/4"~2"

BAR STOCK/INVESTMENT CASTING
STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619) (ASTM-A216-WCB)

  • Pipe thread in accordance with ASME B 1.20.1, Rp, Rc, G
  • Blow-out proof stem
  • VIH: 1000 PSI (PN 63)/VIHC: 2000 PSI (PN 130)
  • Dimension of VIH is different
  • Polished surface(VIH: Stainless steel only)
test
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLEHW
1/4" 5.0 39 61.0 29.5 17
3/8" 7.2 44 79.0 34.5 21
1/2" 9.2 56.2 108.0 56.0 28.0
3/4" 12.5 65.1 110.0 65.0 34.5
1" 15.0 76.2 122.0 68.0 40.5
1-1/4" 20.0 92.1 145.0 79.5 53.5
1-1/2" 24.5 98.4 148.0 84.0 57.5
2" 32.0 114.3 148.0 92.5 73.0
