1-PC BALL VALVE, 2000 PSI (Threaded)

1-PC BALL VALVE, 2000 PSI (Threaded)

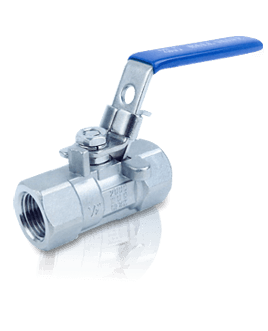

Product Name : 1-PC BALL VALVE, 2000 PSI (Threaded)
Product Description

V-1M Type

SIZE: 1/4"~2"

2000/1500WOG

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

Add to Inquiry
  • Pipe thread in accordance with ANSI B1.20.1 , Rp,Rc,G
  • Blow-out proof stem
  • Investment casting body and inscrewed
  • 2000 PSI(PN 130) /1500 PSI(PN100)
  • With mounting Pad
  • Locking device
  • Drilled and tapped mounting pad
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLEHW
1/4"~3/8" 9.2 58.6 109 46.9 28.5
1/2" 9.2 66 102 57,9 28.2
3/4" 12.5 70 102 60.9 28.3
1" 15 80 104.7 63.8 35.6
1-1/4" 20 95 101.9 70.3 35.6
1-1/2" 25 101 156.1 72.3 35.6
2" 32 114 155.1 78.3 35.6
