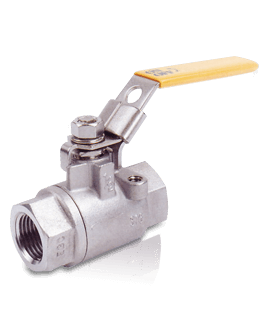

Product Name : 2-PC BALL VALVE, 2000PSI (Threaded)
Product Description

V-2 TYPE

SIZE: 1/4"~4"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

  • Full port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973 , DIN 259/2999 , ISO 228
  • With mounting pad
  • Blow-out proof stem
  • Investment casting body and cap
  • Mounting pad ISO 5211
  • 1000WOG(63 BAR) / 2000WOG(130 BAR)
  • Locking device
  • Drilled and tapped mounting pad
  • DIN standard M3 length
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLHWSS1XNPBLCV
FACTOR
TORQUE
kgf-cm
KGS
1/4" 11.6 60.5 53 95 16.5 10.2 5 12.5 28.5 5/16" 6.6 46 0.33
3/8" 12.7 60.5 53 95 16.5 10.2 5 12.5 28.5 5/16" 7.9 46 0.33
1/2" 15 62.5 53 95 16.5 10.2 5 12.5 28.5 5/16" 11.2 54 0.34
3/4" 20 77 60 110 20 13.5 6.5 21 34.8 3/8" 21 78 0.60
1" 25.4 90 74 135 23.5 16 8 22.5 34.8 7/16" 35 106 1.02
1-1/4" 32 100 80 135 23.5 16 8 23.5 38.1 7/16" 57 150 1.57
1-1/2" 38 118 92 165 25.5 17 9 23.5 38.1 1/2" 80 200 2.28
2" 50.8 138 101 165 25.5 17 9 34 38.1 1/2" 150 280 3.70
2-1/2" 65 167 130 215 41 29.5 12 35 56 3/4" 265 500 7.10
3" 80 193 142 215 41 29.5 12 35 56 3/4" 415 770 11.68
4" 100 260 174 325 48 36.5 16 50 63 1" 780 1100 23.00
