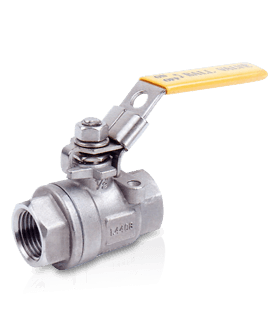

Product Name : 2-PC BALL VALVE, 1000PSI (Threaded)
Product Description

V-2E TYPE

SIZE: 1/4"~4"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

  • Full port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973, DIN 259/2999 , ISO 228
  • With mounting pad
  • Blow-out proof stem
  • Investment casting body and cap
  • Mounting pad ISO 5211
  • 1000 WOG(63 BAR)
  • Locking device
  • Drilled and tapped mounting pad
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLHWSS1XNPBLCV
FACTOR
TORQUE
kgf-cm
KGS
1/4" 11.6 44..5 51 95 16.8 10.2 5 12.5 25 5/16" 6.6 40 0.22
3/8" 12.7 44.5 51 95 16.8 10.2 5 12.5 25 5/16" 7.9 40 0.22
1/2" 15 57 53 95 16.8 10.2 5 12.5 25 5/16" 11.2 54 0.29
3/4" 20 65 59.5 110 21 13.5 6.5 21 24 3/8" 21 74 0.42
1" 25 76 73 135 24 16 8 22.5 33.5 7/16" 35 104 0.71
1-1/4" 32 87.5 79 135 25 16 8 23.5 38.1 7/16" 57 135 1.06
1-1/2" 38 102 90.5 165 26.5 17 9 23.5 38.1 1/2" 80 180 1.68
2" 50 123 98.5 165 26.5 17 9 23.5 38.1 1/2" 148 250 2.71
2-1/2" 65 156 130.5 215 41.5 29.5 12 35 56 3/4" 265 480 5.25
3" 80 184 142.5 215 41.5 29.5 12 35 56 3/4" 415 750 8.6
4" 100 250 173.5 325 47.5 36.5 16 50 63 1" 780 1100 19.32
