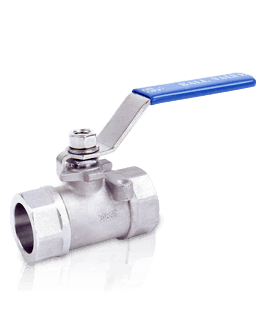

Product Name : 2-PC BALL VALVE, 2000PSI (Threaded)
Product Description

V-2ER TYPE

SIZE: 1/4"~2"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Reduced port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973, DIN 259/2999 , ISO 228
  • Locking device
  • Blow-out proof stem
  • Investment casting body and cap
  • 1/2"~1":2000 WOG(130 BAR)
  • 1-1/4"~2":1500 WOG(100 BAR)
  • Locking device
DIMENSIONS (UNIT:mm)
NOMINAL SIZEdLHWXYCV
FACTOR		TORQUE
kgf-cm
1/2" 10 59.5 50.5 93 25 12.5 9.5 40
3/4" 15 60.0 52.9 93 25 12.5 14 57
1" 20 82.5 59.1 110 25 21 26 78
1-1/4" 25 91.0 65.1 110 33.5 22.5 43 106
1-1/2" 32 99.0 77.3 135 38.1 23.5 70 150
2" 40 120 86.9 135 38.1 23.5 102 200
