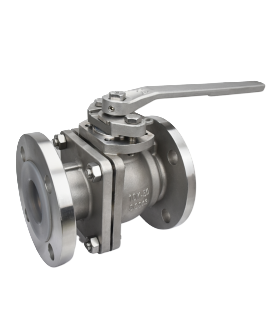

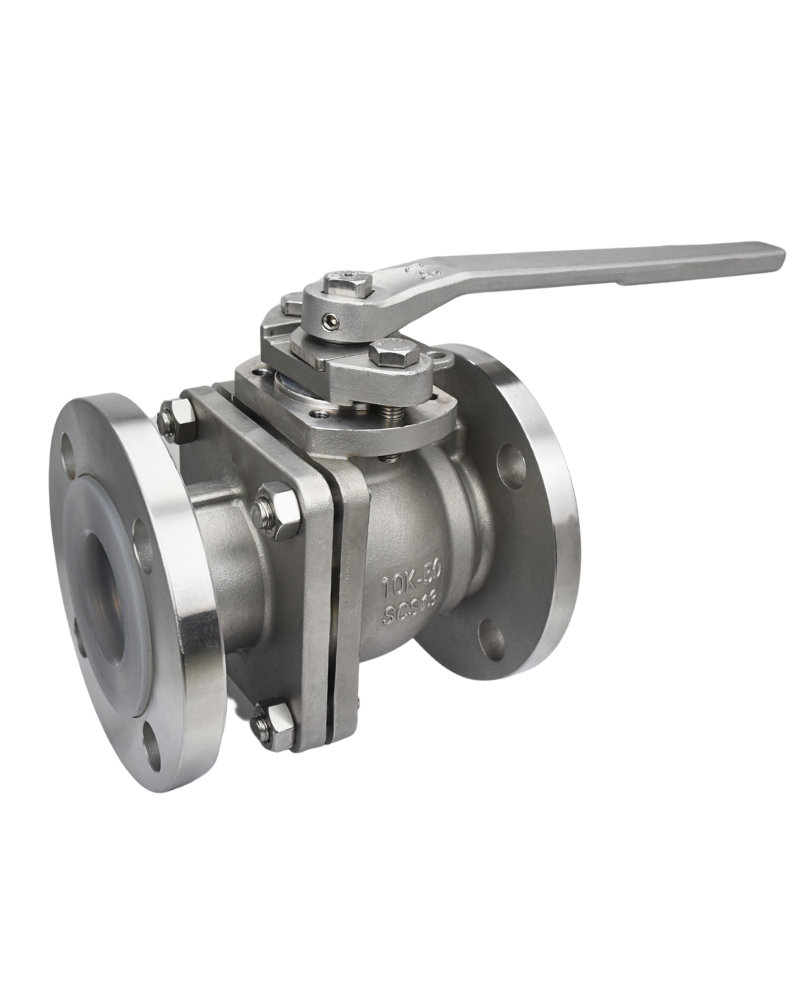

2-PC BALL VALVE, JIS 10K (Flanged, PFA Lining)
- Full port, solid ball
- Pressure Rating: 10K
- Temperature: -20°C to 160°C
- PFA Lining over 2.54mm thickness

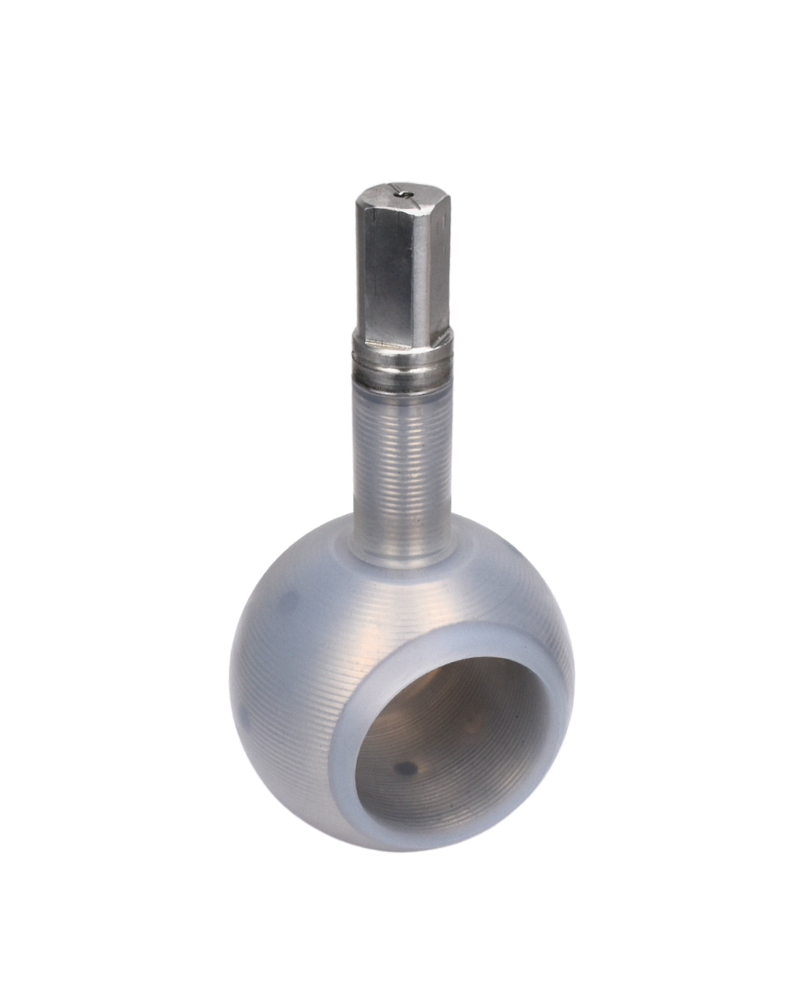

- PFA lined Trunnion Mounted Ball&Stem, Blow-out Proof
- Body, Cap, Ball and Stem in stainless steel with PFA liner
- Investment casting body and cap
- Anti-static device
- Adjustable stem packing
- Mounting pad ISO 5211
- V-port solid ball
- Locking devices
- Chemical Processing
- Pharmaceutical
- Semiconductor Manufacturing
- Water Treatment
- Petroleum / Oil & Gas
- Food and Beverage / Fertilizer
- Petrochemical
- Power Generation
- Steel Manufacturing
- Acids (sulfuric acid, nitric acid, hydrochloric acid, phosphoric acid)
- Bases (e.g., sodium hydroxide)
- Solvents (e.g., acetone, methanol)
- Corrosive chemicals
- Brine, seawater, Chlorine (CI2), Bromine (Br2)
- AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
- AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
- S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2
The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.
All ball valves can be supplied with an EN 10204-3.1 material and test certificate.
All Valtec valves undergo rigorous testing to ensure top performance and reliability. We achieve a leakage rate of A and Bubble Tight Shutoff standards. For JIS 10K valves, we follow the JIS B2003 testing standard, and for ANSI 150LB valves, we adhere to API 598.
Each PFA lined ball valve undergoes a 100% sparking test at 10kV DC (10,000 volts) to detect any liner porosity. This stringent testing ensures a homogeneous PFA lining without any pinholes, providing effective protection against diffusion and corrosion.
Each PFA lined ball valve features a PFA lining with a minimum thickness of 2.54mm, meeting the ASTM F1545 standards for durability and performance. This lining provides excellent corrosion resistance, ensuring longevity and reliability in chemical processing or semiconductor industry.
