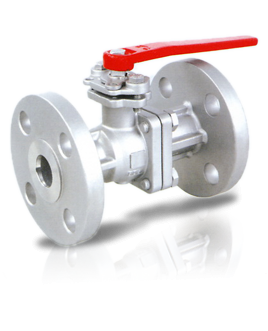

Product Name : 2-PC BALL VALVE, Class 300 (Flanged)
Product Description

V-2F-300LBS TYPE

SIZE:1/2"~8"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Flange:ANSI B16.5 class 300
  • Face to face : ANSI B16.10
  • Anti-static device, fire safe design
  • Blow-out proof stem, lever operated
  • Solid ball
  • Mounting pad for ISO 5211
  • Fixed handle
  • Locking device
DIMENSIONS(JIS 10K) (UNIT:mm)
NOMINAL
SIZE		ØdØDØCØGTN-ØMLHWW1JISO
5211		EMa
1/2" 15 95 66.5 35 14.3 4-Ø16 140 72 160 12 50 F04 42 M5
3/4" 20 117 82.5 43 15.9 4-Ø19 152 74 160 12 50 F04 42 M5
1" 25 124 89.0 51 17.5 4-Ø19 165 82 160 12 50 F05 50 M6
1-1/4" 32 133 98.5 64 19.1 4-Ø19 178 85 160 12 50 F05 50 M6
1-1/2" 40 156 114.5 73 20.7 4-Ø22 190 104 186 17 62 F07 70 M8
2" 50 165 127.0 92 22.3 8-Ø19 216 114 186 17 62 F07 70 M8
2-1/2" 65 190 149.0 105 25.4 8-Ø22 241 142 324 21 75 F07 70 M8
3" 80 210 168.0 127 28.6 8-Ø22 283 155 324 21 75 F10 102 M10
4" 100 254 200.0 157 31.8 8-Ø22 305 169 324 21 75 F10 102 M10
5" 125 279 235.0 186 35.0 8-Ø22 381 224 750 24 89 F12 125 M12
6" 150 318 270.0 216 36.6 12-Q22 403 247 750 24 89 F12 125 M12
7" 200 381 330.0 270 41.3 12-Ø25 502 305 1000 32 100 F12 125 M12
8" 250 444 387.5 324 47.7 12-Ø29 568 351 1000 32 100 F14 140 M16
