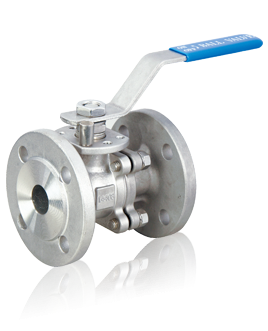

2-PC BALL VALVE, PN16 PN40 (Flanged)

2-PC BALL VALVE, PN16 PN40 (Flanged)
Product Name : 2-PC BALL VALVE, PN16 PN40 (Flanged)
Product Description

V-2F-PN16/PN40 TYPE

Welcome to contact us for the technical data sheet.


SIZE:

  • 1/2"~12"

END CONNECTION:

  • Flanged: EN 1092-1 PN16 / PN40
  • Face to Face: DIN 3202 F4 (1/2"~4"), F5 (5"~6")
Add to Inquiry
  • Full Port
  • Anti-Static device
  • Fire Safe design
  • Blow-out proof stem, lever operated
  • Mounting Pad ISO 5211
  • DN125-300: Round iron handle nickel plated
  • Fixed handle
  • Casting handle (WCB)
  • Locking device
  • Solid ball / Hollow ball / Welding ball
  • Face to face: DIN3202 F1
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table
All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
