2-PC BALL VALVE, Class 150 / 300 (Flanged)

2-PC BALL VALVE, Class 150 / 300 (Flanged)

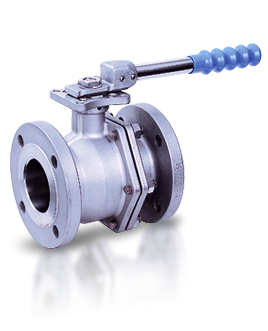

Product Name : 2-PC BALL VALVE, Class 150 / 300 (Flanged)
Product Description

V-2FH-150L/300L TYPE

SIZE:1/2"~6"

DIRECT MOUNTING PAD

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Flange:
  • ANSI B16.5 class 150/ class 300
  • Face to face : B16.10
  • Anti-static device, fire safe design
  • Blow-out proof stem, lever operated
  • Solid ball
  • Direct mounting pad ISO 5211
  • Lock device(Different mould)
  • Hollow ball(Different mould 150L)
DIMENSIONS (UNIT:mm)
NOMINAL
SIZE		ØdØAØBØEØCFG1-HM1M2&#9744QLWHSS1TVTorque
(Kgf-cm)		Weight
(Kg)
1/2" 15 42 - 89 60.5 1.6 9.6 4-16 Ø6 - 9 108 110 89 46.5 56 3.3 13.2 50 1.6
3/4" 20 42 50 96 70 1.6 11.2 4-16 R3 R3.5 9 117 110 94 51.5 61 3.7 16.5 80 2.3
1" 25 42 50 108 79.5 1.6 12.7 4-16 R3 R3.5 11 127 136 95 57.5 67 3.9 16.2 105 3.2
1-1/2" 40 50 70 127 98.5 1.6 15.9 4-16 R3.5 R4.5 14 165 203 110.7 76.5 92 4.9 20.6 205 6.3
2" 50 50 70 152.4 120.5 1.6 17.5 4-19 R3.5 R4.5 14 178 203 117.7 83.5 99 5.5 20.9 310 9.3
2-1/2" 65 70 102 178 139.5 1.6 20.8 4-19 Ø9 Ø11 17 190 277.5 155.5 118.5 137 5.8 30 370 15.9
3" 80 70 102 190.5 152.5 1.6 22.3 4-19 Ø9 Ø11 17 203 277.5 166.5 129.5 148 6.1 31 620 20.3
4" 100 70 102 229 190.5 1.6 22.3 8-19 Ø9 Ø11 17 230 377.5 182 145 163.5 6.5 26.5 970 30.0
5" 125 102 125 255 215.9 1.6 22.3 8-22.5 R6 R7 27 356 415 225 158.5 202.1 6.8 18.5 1600 48.4
6" 150 102 125 280 241.3 1.5 23.9 8-22.5 R6 R7 27 394 415 240 175 221.3 7.1 17 2100 64.2
