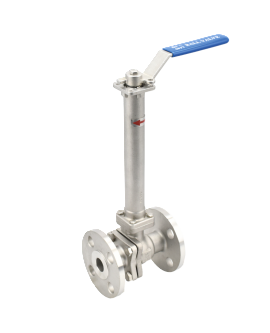

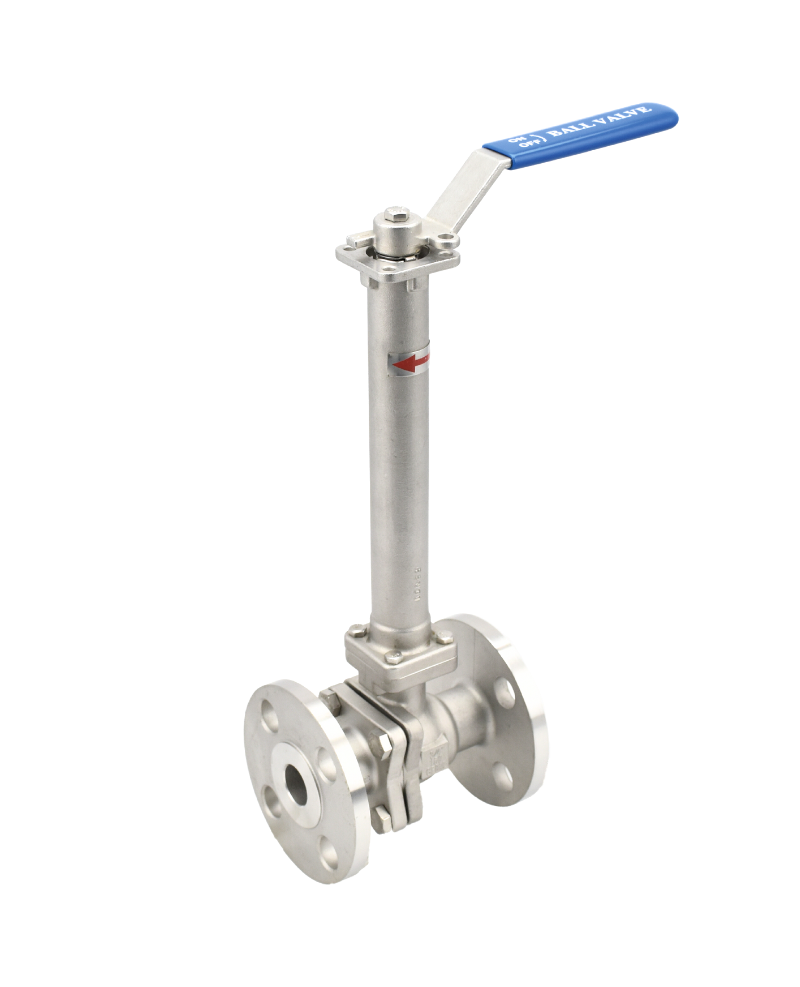

2-PC CRYOGENIC BALL VALVE (Flanged)

2-PC Cryogenic Ball Valve_Flanged
Product Name : 2-PC CRYOGENIC BALL VALVE (Flanged)
Product Description

V-2FHLN TYPE

Welcome to contact us for the technical data sheet.


CRYOGENIC USE | BS 6364 TEST


SIZE:

  • 1/2"-2" Class 150 (PN10 / PN40)
  • 2-1/2"-4" Class 150 (PN16)

END CONNECTION:

  • Flanged: EN1092-1 (PN16 / PN40)
  • Face to Face: ASME B16.10 (Class 150), DIN3202 F4 (PN16 / PN40)
Add to Inquiry
  • Full Bore (Full Port)
  • Pressure: Class 150, DIN PN16, DIN PN40
  • Temperature: Down to -196°C
  • Cavity Relief Hole
  • Investment casting body and cap
  • Long neck design
  • Blow-out proof stem
  • Viton O-Ring on stem
  • Anti-static design
  • Locking device design
  • Direct mounting pad ISO 5211
  • LNG / LN2 / LO2 terminals
  • LNG / LN2 / LO2 transportation
  • Cryosurgery
  • Cryobiology
  • Cryoelectronic Cooling
  • Cryotherapy
  • Air Separation
  • Chemical
  • Petrochemical
  • Food Preservation
  • Medical Health
  • Research Labs
  • Transportation of Gases
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-316L / EN10213 1.4409 / ASTM-A351-CF3M / JIS-SCS16A
  • AISI-304L / EN10213 1.4309 / ASTM-A351-CF3 / JIS-SCS19AA

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.

All cryogenic valves are supplied with an exhaustive EN-10204 test certificate, encompassing both type 3.1 and type 3.2 certifications as standard practice. Upon request, Cryogenic tests conforming to BS 6364 and other cleaning tests compliant with CGA G4.1, EIGA 33.18, EN 12300 are also available. ASTM A380 passivation standard that defines best practices for cleaning, descaling and passivating stainless steel is also available upon request.
