2-PC BALL VALVE, 6000 PSI (Threaded)

Valtec_V-2HP_6000CWP
Product Name : 2-PC BALL VALVE, 6000 PSI (Threaded)
Product Description

V-2HP TYPE

Welcome to contact us for the technical data sheet.


HIGH PRESSURE | 6000 CWP (PN 414)


SIZE:

  • 1/4”~2”

END CONNECTION:

  • Threaded: ISO 228-1 / G, ISO 7-1 / Rp Rc R, ASME B1.20.1 / NPT, JIS B 0202 / JIS B 0203
Add to Inquiry
  • Full port
  • 6000 WOG (414 BAR)
  • Blow-out proof stem
  • Anti-Static device
  • Fire Safe design (Graphite)
  • Investment casting body and cap
  • Direct mounting pad ISO 5211

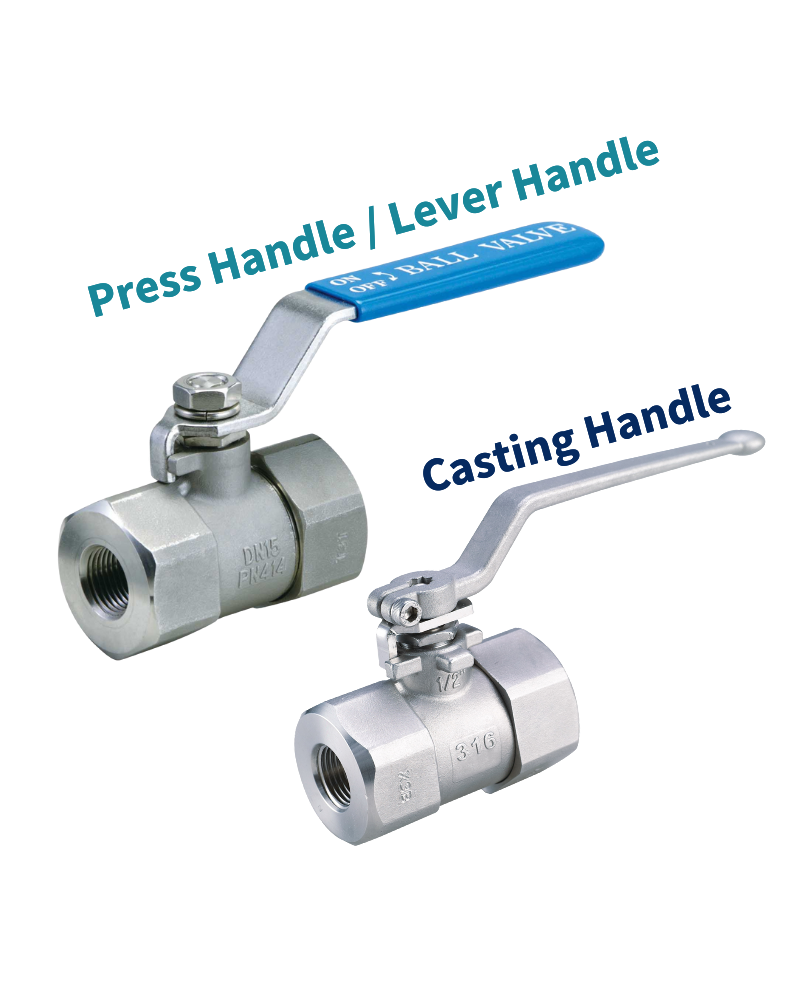

  • Casting handle / Press Handle / Lever Handle
  • Locking device
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
