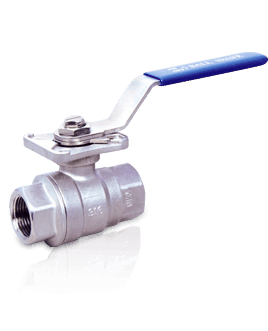

2-PC BALL VALVE, 1000PSI (Threaded)
- Full Port
- Blow-out proof stem
- Investment casting body and cap
- 1000 WOG (63 BAR) / 1000PSI (PN 63)
- Direct Mounting Pad ISO 5211
- C style clip design (Bare Shaft / Bare Stem)
- DIN 3202 M3 length
- Locking device
- Low Mounting Pad ISO 5211
Stainless Steel
- AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
- AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
- S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2
The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.
All ball valves can be supplied with an EN 10204-3.1 material and test certificate.
| DIMENSIONS (UNIT:mm) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE | Φd | ISO 5211 | L | S | S1 | L1 | TORQUE kgf-cm | CV FACTOR | KGS | ||||||
| Pcd | ΦA | Pcd ΦB | M1 | M2 | ☐Q | ||||||||||
| 1/4" | 11 | F03 | 36 | - | - | Φ6.0 | - | 9.0 | 49.6 | 36 | 10 | 110 | 45 | 6.4 | 0.31 |
| 3/8" | 12.7 | F03 | 36 | - | - | Φ6.0 | - | 9.0 | 49.6 | 36 | 10 | 110 | 45 | 7.9 | 0.31 |
| 1/2" | 15 | F04 | 42 | - | - | Φ7.0 | - | 9.0 | 55 | 38 | 10 | 110 | 55 | 11.2 | 0.34 |
| 3/4" | 20 | F04 | 42 | F05 | 50 | R3.0 | R3.5 | 11 | 75.5 | 41.7 | 12 | 136 | 90 | 21 | 0.62 |
| 1" | 25 | F04 | 42 | F05 | 50 | R3.0 | R3.5 | 11 | 82.5 | 44.4 | 12 | 136 | 110 | 35 | 0.78 |
| 1-1/4" | 32 | F05 | 50 | F07 | 70 | R3.5 | R4.5 | 14 | 90.8 | 54 | 16.5 | 158 | 155 | 57 | 1.35 |
| 1-1/2" | 40 | F05 | 50 | F07 | 70 | R3.5 | R4.5 | 14 | 103 | 59.5 | 16.5 | 203 | 220 | 85 | 1.91 |
| 2" | 50 | F05 | 50 | F07 | 70 | R3.5 | R4.5 | 14 | 120 | 67 | 16.5 | 203 | 330 | 148 | 2.8 |
| 2-1/2" | 65 | F07 | 70 | F10 | 102 | Φ9.0 | Φ11 | 17 | 155 | 101.5 | 24.5 | 322.5 | 400 | 265 | 6.98 |
| 3" | 80 | F07 | 70 | F10 | 102 | Φ9.0 | Φ11 | 17 | 182 | 112.5 | 24.5 | 322.5 | 600 | 415 | 10.3 |
