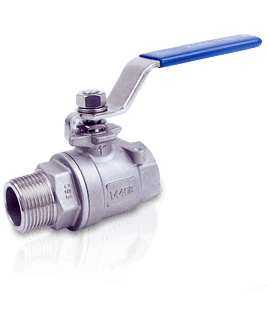

Product Name : 2-PC BALL VALVE, 1000PSI (Threaded, Female x Male)
Product Description

V-2NF TYPE

SIZE: 1/4"~2"

FEMALE X MALE

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

  • Full port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973, DIN 259/2999 , ISO 228
  • With mounting pad
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG(63 BAR)
  • Locking device
  • Drilled and tapped mounting pad
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdΦd1LL1HWSS1XNPBLCV
FACTOR
TORQUE
kgf-cm
1/4" 11.6 7.0 63 12.6 51 95 16.5 10.2 5.0 12.5 28.5 5/16" 6.6 40
3/8" 12.7 8.5 63.5 13.2 51 95 16.5 10.2 5.0 12.5 28.5 5/16" 7.9 40
1/2" 15 12.5 74 16.7 53 95 16.5 10.2 5.0 12.5 28.5 5/16" 11.2 54
3/4" 20 17.5 82 18.2 59 110 20 13.5 6.5 21 34.8 3/8" 21 74
1" 25 23.6 98.5 21 73 135 23.5 16 8.0 22.5 34.8 7/16" 35 104
1-1/4" 32 30.8 112.4 23.5 78 135 23.5 16 8.0 23.5 38.1 7/16" 57 135
1-1/2" 38 36.6 126.4 23.5 91 165 25.5 17 9.0 23.5 38.1 1/2" 80 180
2" 50 47.5 151.7 27.8 99 165 25.5 17 9.0 23.5 38.1 1/2" 148 250
