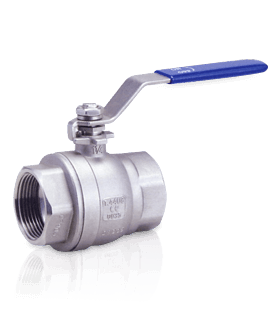

Product Name : 2-PC BALL VALVE, 1000PSI (Threaded)
Product Description

V-2S TYPE

SIZE: 1/4"~4"

ECONOMIC TYPE

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

  • Full port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973, DIN 259/2999 , ISO 228
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG(63 BAR)
  • Locking device
DIMENSIONS (UNIT:mm)
NOMINAL SIZEdLH1HWBLXCV
FACTOR
TORQUE
kgf-cm
KGS
1/4" 9.2 40 79 43 76 5/16"-18 4 6.6 36 0.115
3/8" 12.8 12 23 50 76 5/16"-18 4 7.9 36 0.14
1/2" 15 50 24 50 85 5/16"-18 5 11.2 48 0.21
3/4" 20 60 31 57 95 3/8"-16 5 21 66 0.325
1" 25 70 36 68 120 7/16"-14 6.5 35 94 0.515
1-1/4" 32 80 40 74 120 7/16"-14 6.5 57 122 0.8
1-1/2" 38 90 50 85 150 1/2"-12 8.5 80 162 1.24
2" 50 105 58 94 150 1/2"-12 8.5 148 225 2.0
2-1/2" 65 140 73 136 215 3/4"-10 12 265 432 4.655
3" 80 158 84 146 215 3/4"-10 12 415 675 6.905
4" 100 200 103 168 300 1"-8 16 415 900 14.2
