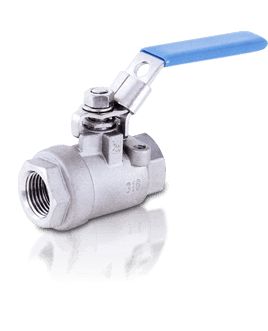

Product Name : 2-PC BALL VALVE, 3000PSI (Threaded)
Product Description

V-2W TYPE

SIZE: 1/4"~2"

3000 WOG

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

  • Full port
  • Welding between cap and body
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973 , DIN 259/2999 , ISO 228
  • Blow-out proof stem
  • 3000 WOG(200 BAR)
  • With mounting Pad
  • Locking device
  • Drilled and tapped mounting pad
  • 1/2": DIN 3203 M3 length
DIMENSIONS (UNIT:mm)
NOMINAL SIZEΦdLHWNSP1-MXBLCV
FACTOR
TORQUE
kgf-cm
KGS
1/4" 11.6 60.5 58 95 12.5 42.4 28.5 2-1/4 20UNC 5 5/16" 6.6 46 0.36
