2-PC BALL VALVE, 2000PSI (Threaded)

2-PC BALL VALVE, 2000PSI (Threaded)

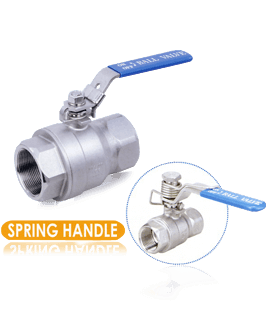

Product Name : 2-PC BALL VALVE, 2000PSI (Threaded)
Product Description

V-2X TYPE

SIZE: 1/4"~3"

2000 / 1500 WOG

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Pipe thread in accordance with ANSI B2.1 , BS 21 1973 , DIN 259/2999 , ISO 228
  • Blow-out proof stem
  • Investment casting body and cap
  • 1/4"~2":2000 WOG(130 BAR)
  • 2-1/2"~3":1500 WOG(100 BAR)
  • Locking device
  • DIN standard M3 length
  • Spring handle
DIMENSIONS (UNIT:mm)
NOMINAL SIZEdLHWXBLCV
FACTOR		TORQUE
kgf-cm
1/4" 11.6 46.5 51 95 5 5/16" 6.6 40
3/8" 12.7 46.5 51 95 5 5/16" 7.9 40
1/2" 15 57 53 95 5 5/16" 11.2 54
3/4" 20 65 59.5 110 6.5 3/8" 21 74
1" 25 76 73 135 8 7/16" 35 104
1-1/4" 32 87.5 79 135 8 7/16" 57 135
1-1/2" 38 102 90.5 165 9 1/2" 80 180
2" 50 123 98.5 165 9 1/2" 148 250
2-1/2" 65 156 130.5 215 12 3/4" 265 480
3" 80 184 142.5 215 12 3/4" 415 750
