3PC THREADED / SOCKET / BUTT WELD END BALL VALVE

3PC THREADED / SOCKET / BUTT WELD END BALL VALVE

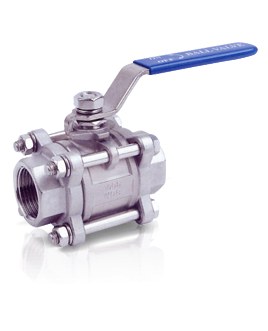

Product Name : 3PC THREADED / SOCKET / BUTT WELD END BALL VALVE
Product Description

V-3 TYPE

SIZE: 1/4"~4"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Pipe thread in accordance with ANSI B2.1,BS 21 1973, DIN 259/2999, ISO 228
  • Lug body
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG (63 BAR)
  • Locking device
  • DIN standard M3 length
DIMENSIONS (UNIT:mm)
NOMINAL SIZEdLHWBDSCV
FACTOR		TORQUE
kgf-cm		KGS
1/4" 11.6 65 51 95 12 18 14.1 6.6 40 0.41
3/8" 12.7 65 51 95 14 18 17.6 7.9 40 0.41
1/2" 15 66 55 95 17.1 22 21.7 11.2 54 0.65
3/4" 20 81 60 110 22.5 27.5 27.1 21 78 0.80
1" 25.4 95 74 135 28 33.5 33.8 35 106 1.20
1-1/4" 32 109 80 135 33.5 44 42.6 57 150 2.05
1-1/2" 38.1 129 92 165 43 50 48.7 80 200 2.80
2" 50.8 150 101 165 53 61.5 61.1 150 280 4.35
2-1/2" 65 180 130 215 65 76 76.9 265 500 8.40
3" 80 206 142 215 80 92 89.8 415 770 14.5
4" 100 261 174 325 100 115 115.4 780 1100 26.5
