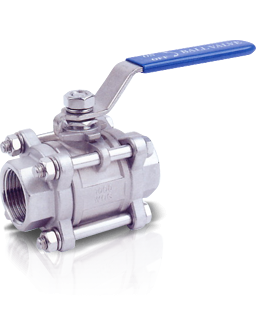

Product Name : 3PC THREADED / SOCKET / BUTT WELD END BALL VALVE
Product Description

V-3E TYPE

SIZE: 1/4"~3"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Pipe thread in accordance with ANSI B2.1,BS 21 1973, DIN 259/2999, ISO 228
  • Lug body
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG (63 BAR)
  • Locking device
  • Reduced port(Different mould)
DIMENSIONS (UNIT:mm)
NOMINAL SIZEdLHWBDSCV
FACTOR		TORQUE
kgf-cm		KGS
1/4" 11.6 54 51 95 12 18 14.1 6.6 40 0.34
3/8" 12.7 54 51 95 12.52 18 17.6 7.9 40 0.34
1/2" 15 61.5 55 95 15.8 22 21.7 11.2 54 0.46
3/4" 20 71 58.5 110 20.93 28 27.2 21 74 0.62
1" 25 83.5 73 135 26.64 34 33.9 34 104 0.96
1-1/4" 32 97 78.5 135 35.05 44 42.6 57 135 1.49
1-1/2" 38 110.5 90.5 165 40.9 50 48.7 80 180 2
2" 50 129 99 165 52.5 61.5 61.1 148 250 3.12
2-1/2" 65 171.5 127 215 69 76 76.9 265 480 6.5
3" 80 200 136 215 82 90 89.8 415 750 10.42
4" 100 252 172 325 106 115 115.4 780 1100 20.3
