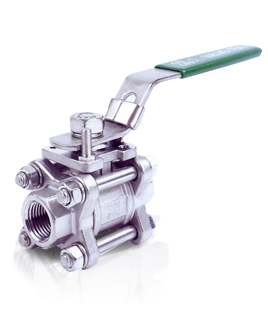

Product Name : 3PC THREADED / SOCKET / BUTT WELD END BALL VALVE
Product Description

V-3M TYPE

SIZE: 1/4"~4"

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Pipe thread in accordance with ANSI B2.1,BS21 1973, DIN 259/2999, ISO 228
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG (63 BAR)
  • Mounting pad for ISO standard 5211
  • Locking device
DIMENSIONS (UNIT:mm)
NOMINAL SIZEØd
±0.1		L±2H±5W+0
-10		S±1S1±1ØB
±0.1		ØB1
±0.1		ØDØD1X±0.1BLISO5211
ØM G		CV
FACTOR		TORQUE
kgf-cm		KGS
1/4" 11.6 58 54 110 11 7.0 12 14.1 18 19 5.0 5/16" 36 M5 6.6 40 0.45
3/8" 12.8 58 54 110 11 7.0 14 17.6 18 22.5 5.0 5/16" 36 M5 7.9 40 0.43
1/2" 15 62 58 110 13.5 8.8 17.1 21.7 22 27 5.0 5/16" 36 M5 11.2 54 0.56
3/4" 20 75.5 63 123 18.3 12.5 22.5 27.1 27.5 33 6.5 3/8" 36 M5 21 78 0.76
1" 25 84.8 77 152 21.5 15.6 28 33.8 33.5 40 8.0 7/16" 42 M5 35 106 1.18
1-1/4" 32 100 82 152 23 15.6 35.5 42.6 44 48.8 8.0 7/16" 42 M5 57 150 1.75
1-1/2" 38 115 94 163 26 16.9 43 48.7 50 55 9.0 1/2" 50 M6 80 200 2.54
2" 50 132 102 163 24 16.9 53 61.1 61.5 67.2 9.0 1/2" 50 M6 150 280 3.66
2-1/2" 65 165 130 238 41.2 29 65 76.9 76 86.4 12 3/4" 70 M8 265 500 7.73
3" 80 183 145 238 38.5 29 80 89.5 92 103 12 3/4" 102 M10 415 770 13
4" 100 231.4 170 308 49 36.6 100 115.5 115 130 16 1" 102 M10 780 1100 23
