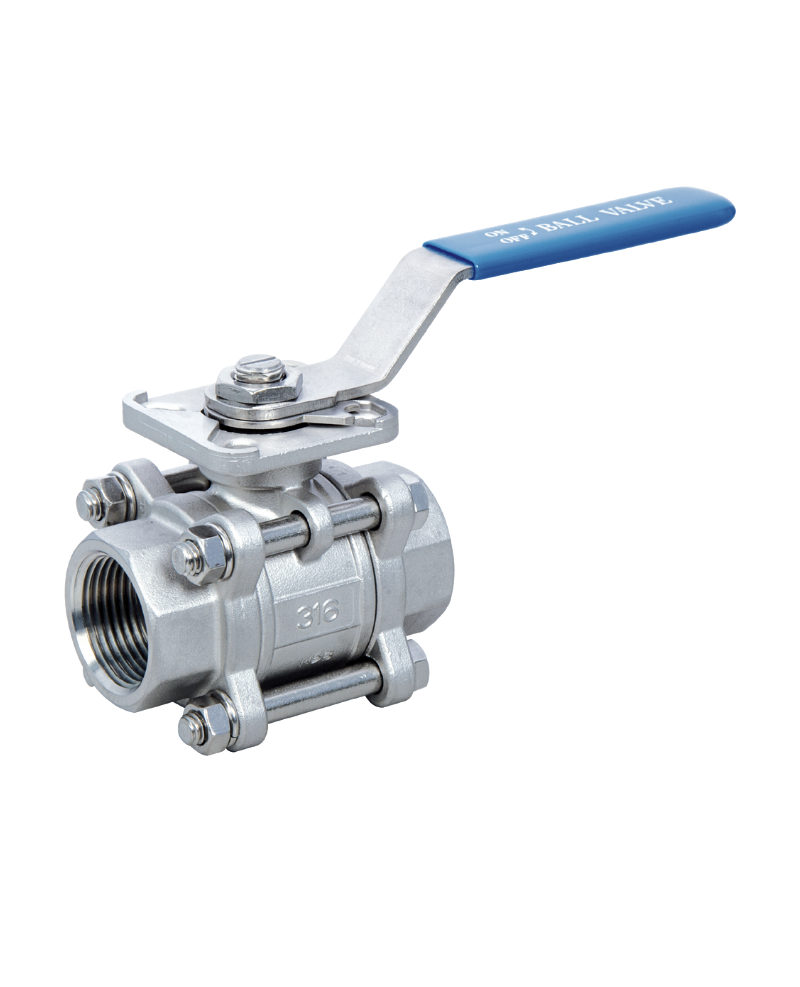

3-PC BALL VALVE, 1000 PSI (Threaded / Socket / Butt Weld)

Valtec_V-3MH_1000CWP
Product Name : 3-PC BALL VALVE, 1000 PSI (Threaded / Socket / Butt Weld)
Product Description

V-3MH TYPE

Welcome to contact us for the technical data sheet.


TA-LUFT APPROVAL | ISO 15848-1 Fugitive Emission Certified


SIZE:

  • 1/4"~4" (1000PSI / PN63)
  • 5”~6” (800PSI / PN40)

END CONNECTION:

  • Threaded: ISO 228-1 / G, ISO 7-1 / Rp Rc R, ASME B1.20.1 / NPT, JIS B 0202 / JIS B 0203
  • Socket Weld: EN 12760 / ASME B16.11
  • Butt Weld: EN 12627 / ASME B16.25
  • 5"~6" Butt Weld Only
Add to Inquiry
  • Full Port
  • TA-LUFT Approved
  • Pressure: 1000CWP (PN63) / 800CWP (PN40)
  • Lug body
  • Blow-out proof stem
  • Investment casting body and cap
  • Direct mounting pad ISO 5211
  • C Style Clip (Bare Shaft / Bare Stem)
  • DIN 3202 M3 length
  • Locking device
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
