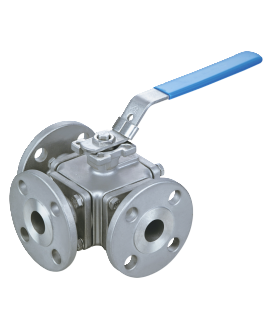

Product Name : 3-WAY BALL VALVE, Class 150 (Flanged)
Product Description

V-3WAY-F CLASS150 TYPE

Welcome to contact us for the technical data sheet.


Valve Ball Choice: L port, T port

(Turn Degree: 0°, 90°, 180°, 270°)


SIZE:

  • 1/2"~6"

END CONNECTION:

  • Flange: ANSI B16.5 Class 150
  • Full Bore (Full Port)
  • Anti-static device
  • Blow-out proof stem, lever operated
  • Investment casting body and cap
  • Direct mounting pad ISO 5211
  • Solid Ball
  • Valve Ball: L port, T port
  • Locking device
  • Flange DIN PN16 Dimension
  • T handle(Different mould)
  • Face to face: ANSI B16.5 class 150 (Different mould,1/2"~6")
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table
All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
