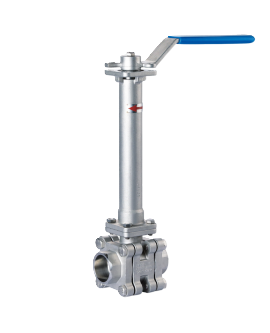

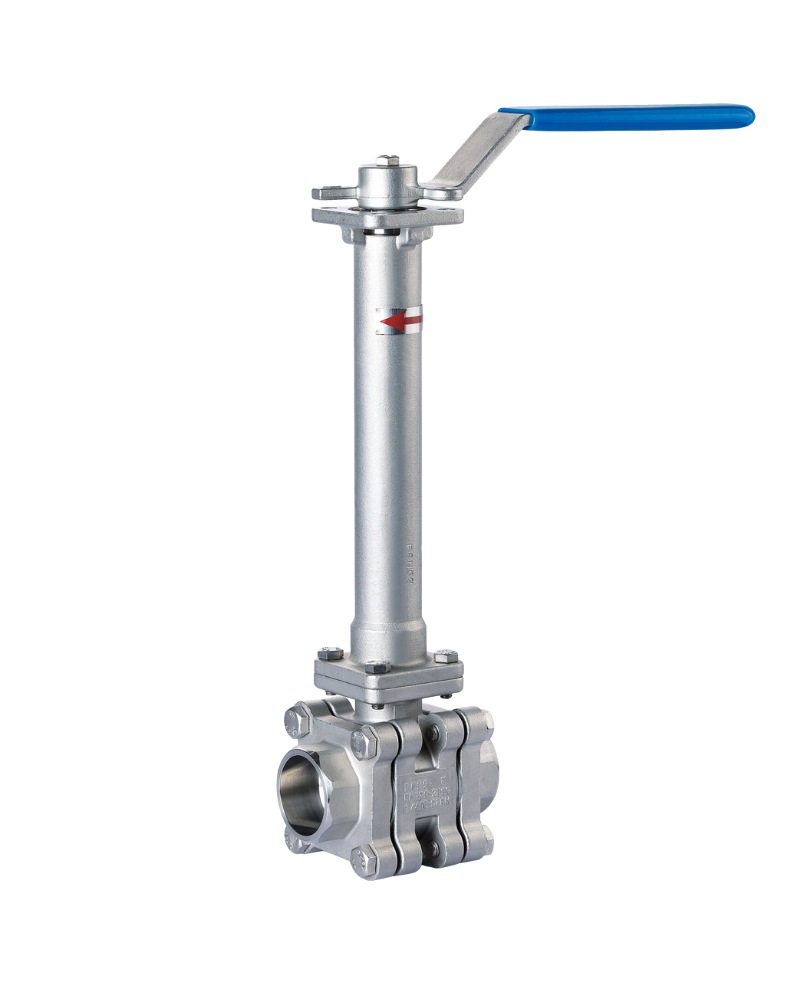

3-PC CRYOGENIC BALL VALVE (Threaded / Socket / Butt Weld)

3-PC Cryogenic Ball Valve_Threaded / Butt Weld / Socket Weld
Product Name : 3-PC CRYOGENIC BALL VALVE (Threaded / Socket / Butt Weld)
Product Description

V-3WLN TYPE

Welcome to contact us for the technical data sheet.


CRYOGENIC USE | BS 6364 TEST


SIZE:

  • 1/4”~2” 2000 CWP (PN 130)
  • 2-1/2”~4” 1000 CWP (PN 63)

END CONNECTION:

  • Threaded: ISO 228-1 / G, ISO 7-1 / Rp Rc R, ASME B1.20.1 / NPT, JIS B 0202 / JIS B 0203
  • Socket Weld: EN 12760 / ASME B16.11
  • Butt Weld: EN 12627 / ASME B16.25
Add to Inquiry
  • Full Bore (Full Port)
  • Pressure: 2000CWP (PN130)
  • Temperature: Down to -196°C
  • Pipe thread in accordance with NPT, Rp, Rc, G
  • End to End: DIN3202 M3 length
  • Investment casting body and cap
  • Encapsulated body
  • Long neck design
  • Blow-out proof stem
  • Anti-static design
  • Locking device design
  • Direct mounting pad ISO 5211
  • Bare Stem
  • End cap in material of CF3M / 1.4409
  • Flanged end design AISI class 150 (1/2”~2”)
  • Flanged end design DIN PN16 F4 (1/2”~2”)
  • LNG / LN2 / LO2 terminals
  • LNG / LN2 / LO2 transportation
  • Cryosurgery
  • Cryobiology
  • Cryoelectronic Cooling
  • Cryotherapy
  • Air Separation
  • Chemical
  • Petrochemical
  • Food Preservation
  • Medical Health
  • Research Labs
  • Transportation of Gases
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-316L / EN10213 1.4409 / ASTM-A351-CF3M / JIS-SCS16A
  • AISI-304L / EN10213 1.4309 / ASTM-A351-CF3 / JIS-SCS19AA

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.

All cryogenic valves are supplied with an exhaustive EN-10204 test certificate, encompassing both type 3.1 and type 3.2 certifications as standard practice. Upon request, Cryogenic tests conforming to BS 6364 and other cleaning tests compliant with CGA G4.1, EIGA 33.18, EN 12300 are also available. ASTM A380 passivation standard that defines best practices for cleaning, descaling and passivating stainless steel is also available upon request.
