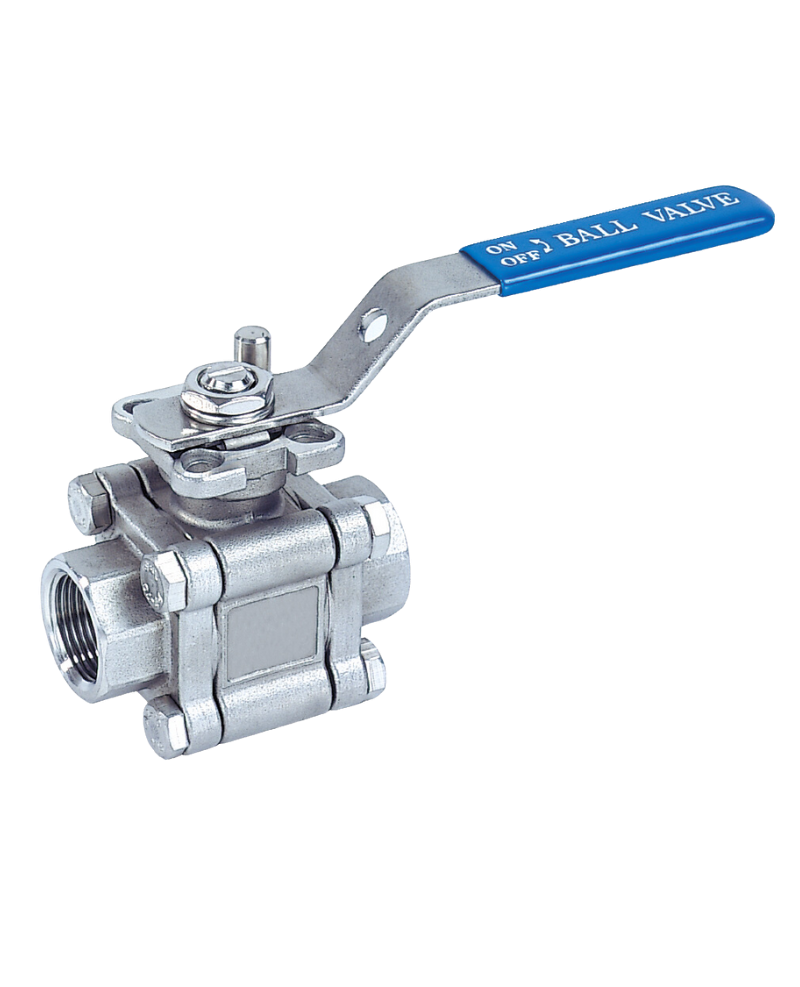

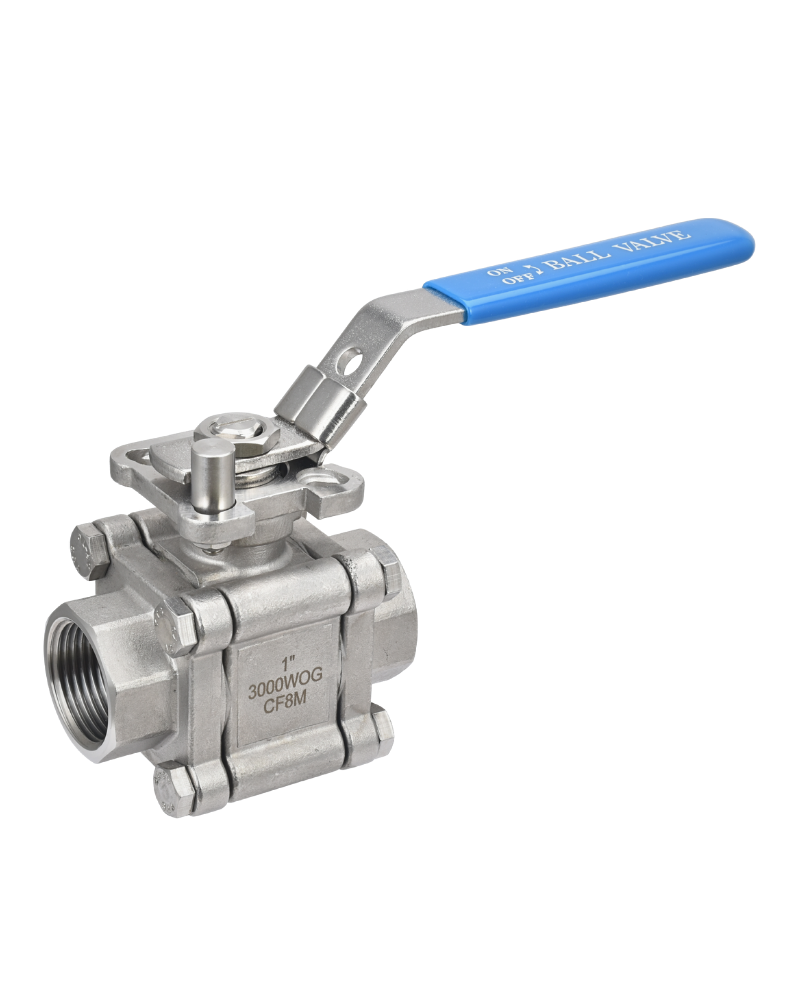

3-PC BALL VALVE, 3000PSI (Threaded / Socket / Butt Weld)

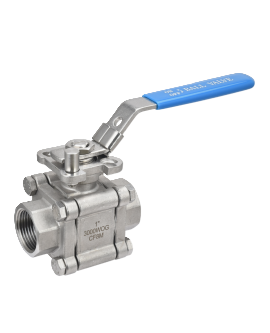

Valtec_V-3WMH_3000CWP
Product Name : 3-PC BALL VALVE, 3000PSI (Threaded / Socket / Butt Weld)
Product Description

V-3WMH TYPE

Welcome to contact us for the technical data sheet.


API 607 & API 641 Approval | Heavy Duty & Fire Safe Design


SIZE:

  • 1/4"~2" (3000PSI / PN200)
  • 2-1/2"~4" (2000PSI / PN130)

END CONNECTION:

  • Threaded:
    ISO 228-1 / JIS B 0202 / G ;
    ISO 7-1 / JIS B 0203 / Rp Rc R ;
    ASME B1.20.1 / NPT
  • Socket Weld: EN 12760 / ASME B16.11
  • Butt Weld: EN 12627 / ASME B16.25
Add to Inquiry
  • Full Bore (Full Port)
  • Pressure: 3000CWP (PN200) / 2000CWP (PN130)
  • Fire Safe Design
  • Heavy Duty Design
  • Blow-out proof stem
  • Investment casting body and cap
  • Encapsulated Body
  • Direct mounting pad ISO 5211
  • Locking device
  • Reduced Port
  • Bare Shaft / Bare Stem
  • DIN 3202 standard M3 length
  • Chemical
  • Petrochemical
  • Process Plants
  • Oil & Gas / Petroleum
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
