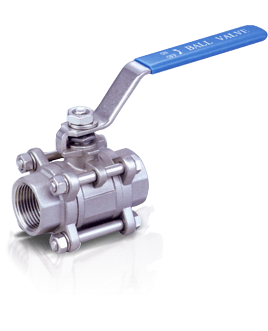

Product Name : 3PC THREADED / SOCKET / BUTT WELD END BALL VALVE
Product Description

V-3X TYPE

SIZE: 1/4"~4"

ECONOMIC TYPE

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Full port
  • Pipe thread in accordance :NPT, BSPT, DIN259, DIN2999, ISO 228 class A
  • Lug body
  • Blow-out proof stem
  • Investment casting body and cap
  • 1000 WOG (63 BAR)
  • Locking device
DIMENSIONS (UNIT:mm)
NOMINAL SIZEØdØd1Ød2ØDØD1ØSLL1L2HWØCKGS
1/4" 11.6 11.6 11.6 22.6 17 14.1 58 58 70 54 102 37.5 0.33
3/8" 12.7 12.7 12.7 22.6 17 17.6 58 58 70 54 102 37.5 0.32
1/2" 15 15 16 27.3 21.3 21.7 63 63 75 62 123 45.5 0.47
3/4" 20 20 20 33.1 26.7 27.1 73 73 90 66 123 52.5 0.60
1" 25 25 25 39.8 33.6 33.8 85 85 100 77 153 57.5 0.86
1-1/4" 32 32 33.8 48.6 42.4 42.6 96 96 110 80 153 71.5 1.34
1-1/2" 38 38 39.5 55.1 48 48.7 114 114 125 91 183 79 1.96
2" 50 50 50.8 68.1 60.5 61.1 134 134 150 98 183 97 3.06
2-1/2" 65 65 62.7 85.9 76.1 76.9 180 180 190 138 246 124.5 6.41
3" 80 80 77.9 100.8 88.9 89.8 200 200 220 149 246 149 9.10
4" 100 100 100 127.5 114.3 115.5 228 228 270 175 246 180.6 14.33
