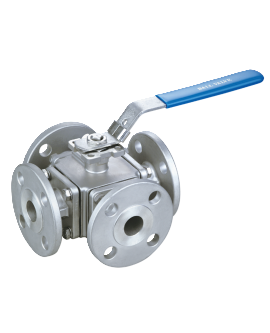

4-WAY BALL VALVE, PN16 (Flanged)

Valtec_V-4WAY-F_Multiport Ball Valve
Product Name : 4-WAY BALL VALVE, PN16 (Flanged)
Product Description

V-4WAY-F PN16 TYPE

Welcome to contact us for the technical data sheet.


Valve Ball Choice: L port, T port, X port

(Turn Degree: 0°, 90°, 180°, 270°)


SIZE:

  • 1/2"~6"

END CONNECTION:

  • Flange: DIN PN16
Add to Inquiry
FEATURES
  • Full Bore (Full Port)
  • Flange: DIN PN16
  • Anti-static device
  • Blow-out proof stem, lever operated
  • Investment casting body and cap
  • Solid ball
  • Valve ball: L port, T port, X port
OPTIONS
  • Locking device
  • Flange AISI B16.5 class 150 Dimension
  • T handle (Different mould)
MATERIALS
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table
STANDARDS / TESTING
All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
