SS BUTTERFLY VALVES (Wafer, PFA Lining)

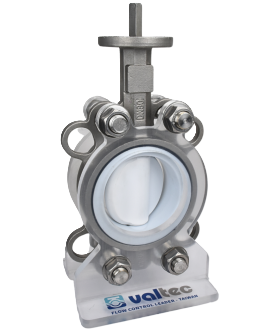

Valtec_VT-BV_PFA lined Butterfly Valve Wafer Type
Product Name : SS BUTTERFLY VALVES (Wafer, PFA Lining)
Product Description

VT-BV WAFER TYPE

Welcome to contact us for the technical data sheet.


DIN PN10, DIN PN16, AISI 150, JIS 10K


SIZE:

  • 1 1/2" ~ 48" (DN40 ~ DN1200)

BODY MATERIALS:

  • Cast Iron (C.I.)
  • Ductile Iron (D.I.)
  • Carbon (WCB)
  • Stainless Steel (SS304 / SS316)
Add to Inquiry
  • Non-shock water under 120°C----10kgf/cm2
  • Hydraulic test pressure:
    • Body: 225PSI (16 kgf/cm2)
    • Seat: 165PSI (12 kgf/cm2)
  • Actuator operation
Stainless Steel
  • AISI-316  / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304  / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table
All Valtec valves undergo rigorous testing to ensure top performance and reliability. We achieve a leakage rate of A and Bubble Tight Shutoff standards. For JIS 10K valves, we follow the JIS B2003 testing standard, and for ANSI 150LB valves, we adhere to API 598.
