NEEDLE VALVE, 6000 PSI (Threaded)

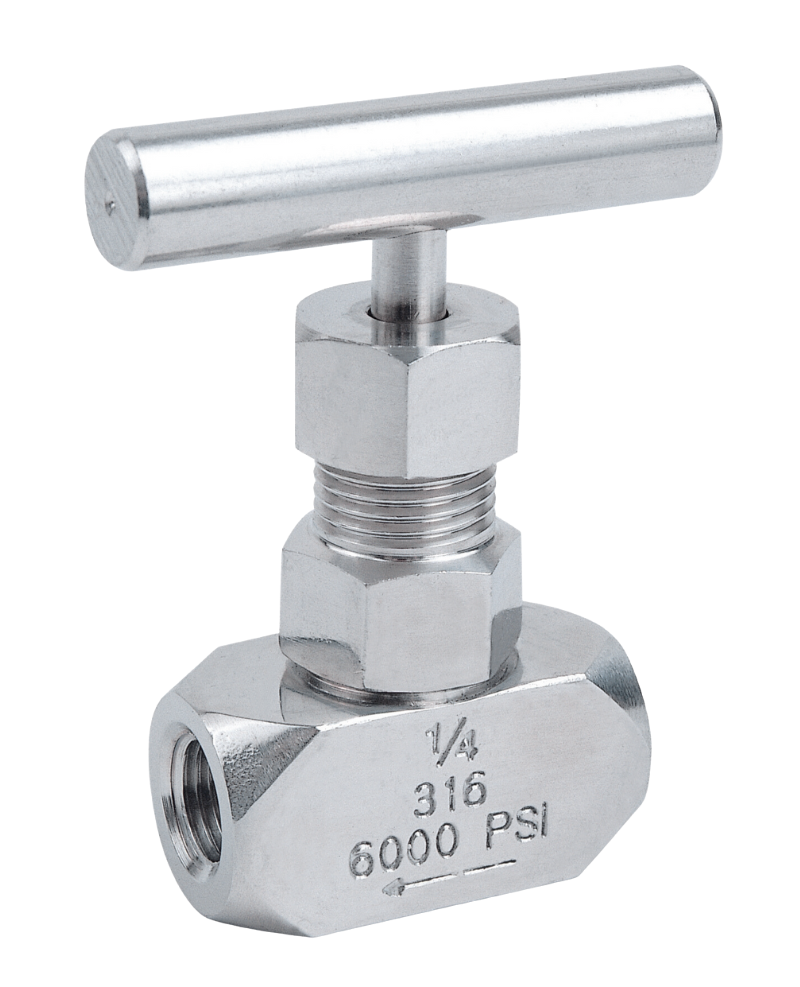

Valtec_Needle Valve_Threaded

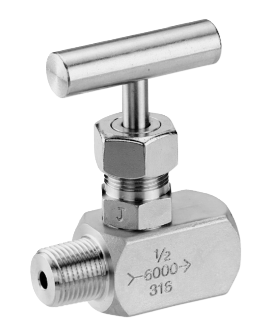

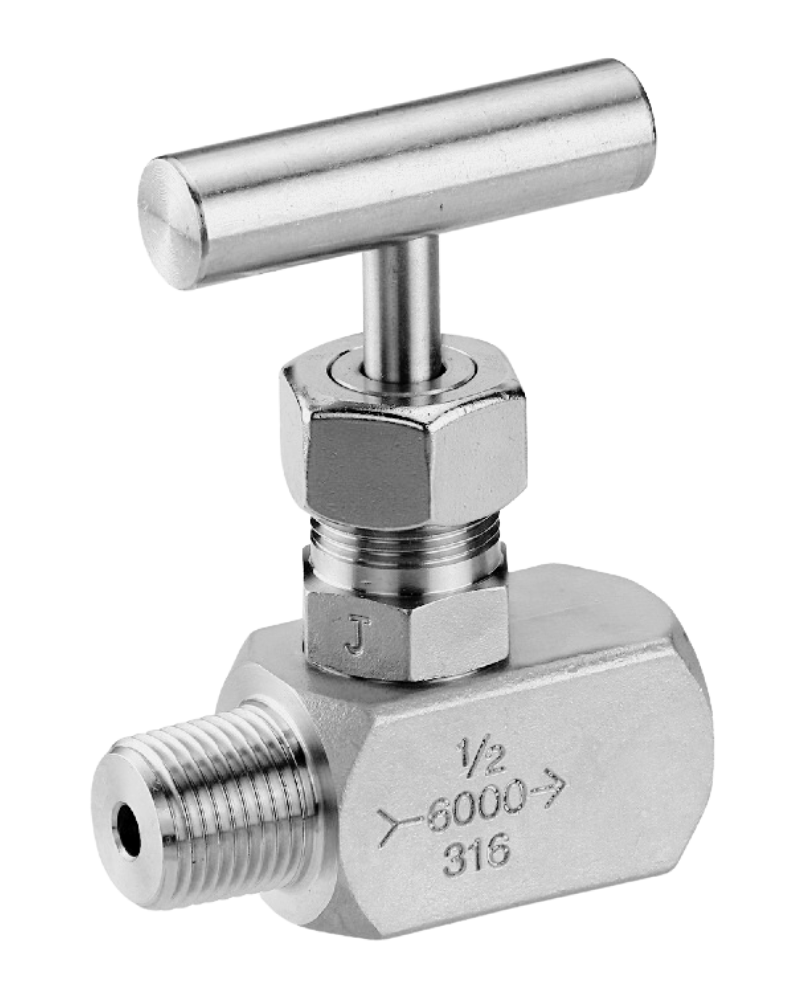

Valtec_Needle Valve_Male x Female
Product Name : NEEDLE VALVE, 6000 PSI (Threaded)
Product Description

VT-ND TYPE

Welcome to contact us for the technical data sheet.


HIGH PRESSURE | 6000 CWP (PN 414)


SIZE:

  • 1/8"~2" (6000PSI / PN414)

END CONNECTION:

  • Threaded: ANSI B2.1, BS21, DIN 259/2999, ISO 228
Add to Inquiry
  • Pressure: 6000CWP (PN414)
  • T handle operation
  • Investment casting body
  • Rising stem design
  • Screwed-in bonnet
  • Pressure: 10000PSI (PN700), Forged Body
  • Male x Female Threaded
  • Angle Type: F x F, M x F
  • Power Generation
  • Thermal Management
  • Natural Gas
  • Control System
  • Gas & Liquid
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
