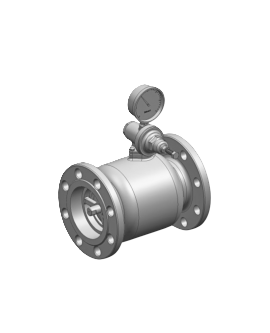

Product Name : Pressure Reducing Valve (Threaded / Flanged)(Piston Type)
Product Description

PRV Piston TYPE

Welcome to contact us for the technical data sheet.


SIZE:

  • Threaded 1 1/2" ~ 2"
  • Flanged 2" ~ 8"

Pressure Reducing Range: 1 ~ 7 Kgf / cm2

Working Temperature Range: -15ºC to maximum 80ºC

Max. Operating Pressure: 22 Kgf / cm2

Testing Pressure (Valve Body): 35 Kgf / cm2

Body Material: Cast Iron / Ductile Iron / Bronze / Stainless Steel

Add to Inquiry
  • Multiple Body Material Options: Available in Cast Iron, Ductile Iron, Bronze, and Stainless Steel, providing flexibility to meet specific environmental and durability requirements.
  • Precise Outlet Pressure Control: Designed to allow users to set and maintain a consistent outlet pressure, ensuring downstream equipment operates with stable pressure, which minimizes shock effects and extends equipment lifespan.
  • Versatile Connection Options: Available with both threaded and J10k flanged designs, making it adaptable for various installation requirements and simplifying setup in different pipeline systems.
  • Reliable and Low Maintenance: The robust piston mechanism resists clogging and requires minimal upkeep, offering durable performance even under high-pressure conditions.
  • Pressure Range: 4 ~ 12 Kgf / cm2
