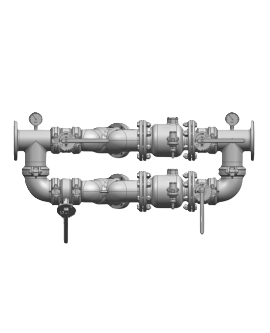

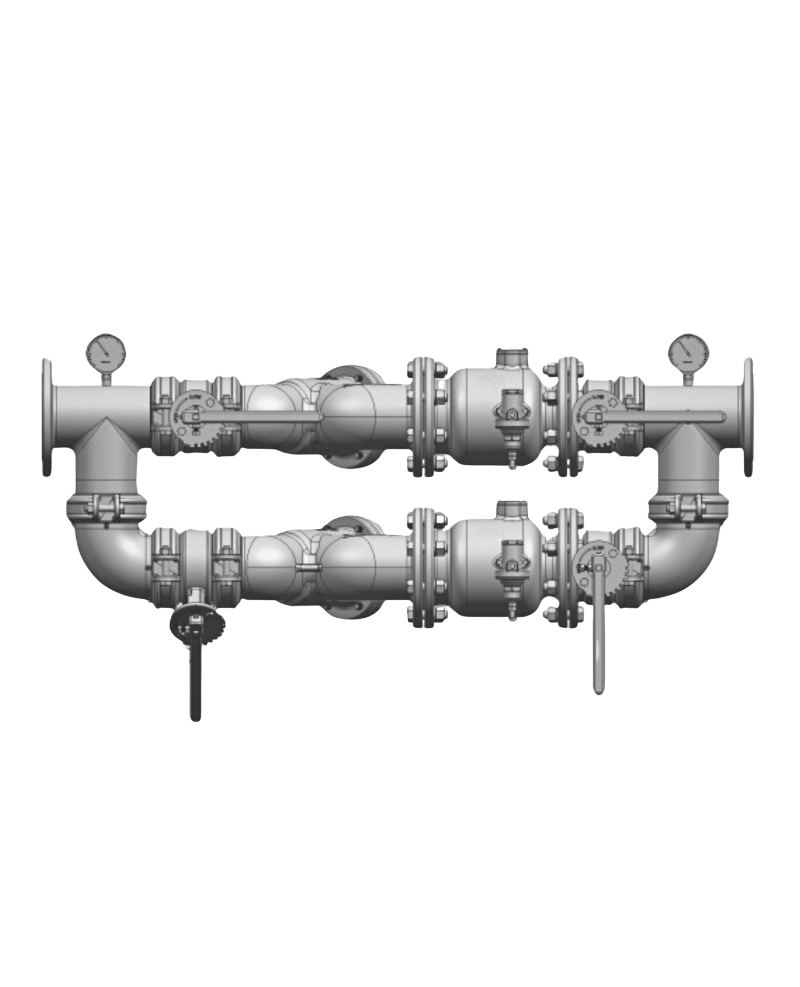

Pressure Reducing Butterfly Valve Set (Flanged) (By-Pass)

Valtec_Pressure Reducing Butterfly Valve Set (Flanged) (By-Pass)
Product Name : Pressure Reducing Butterfly Valve Set (Flanged) (By-Pass)
Product Description

PRV SET (Flanged) TYPE

Welcome to contact us for the technical data sheet.


BUTTERFLY VALVE sample


SIZE:

  • 2" ~ 6"

FLANGE END:

  • JIS 10K
  • JIS 16K
  • Class 150

Pressure Reducing Range: 1 ~ 7 Kgf / cm2

Max. Operating Pressure: 10 Kgf / cm2

Testing Pressure (Valve Body): 15 Kgf / cm2

Body Material: Cast Iron / Ductile Iron / Bronze / Stainless Steel

Add to Inquiry
  • Multiple Body Material Options: Available in Cast Iron, Ductile Iron, Bronze, and Stainless Steel, providing flexibility to meet specific environmental and durability requirements.
  • Precise Outlet Pressure Control: Designed to allow users to set and maintain a consistent outlet pressure, ensuring downstream equipment operates with stable pressure, which minimizes shock effects and extends equipment lifespan.
  • Versatile Connection Options: Available with both threaded and J10k flanged designs, making it adaptable for various installation requirements and simplifying setup in different pipeline systems.
  • Reliable and Low Maintenance: The robust piston mechanism resists clogging and requires minimal upkeep, offering durable performance even under high-pressure conditions.
  • Pressure Range: 4 ~ 12 Kgf / cm2
