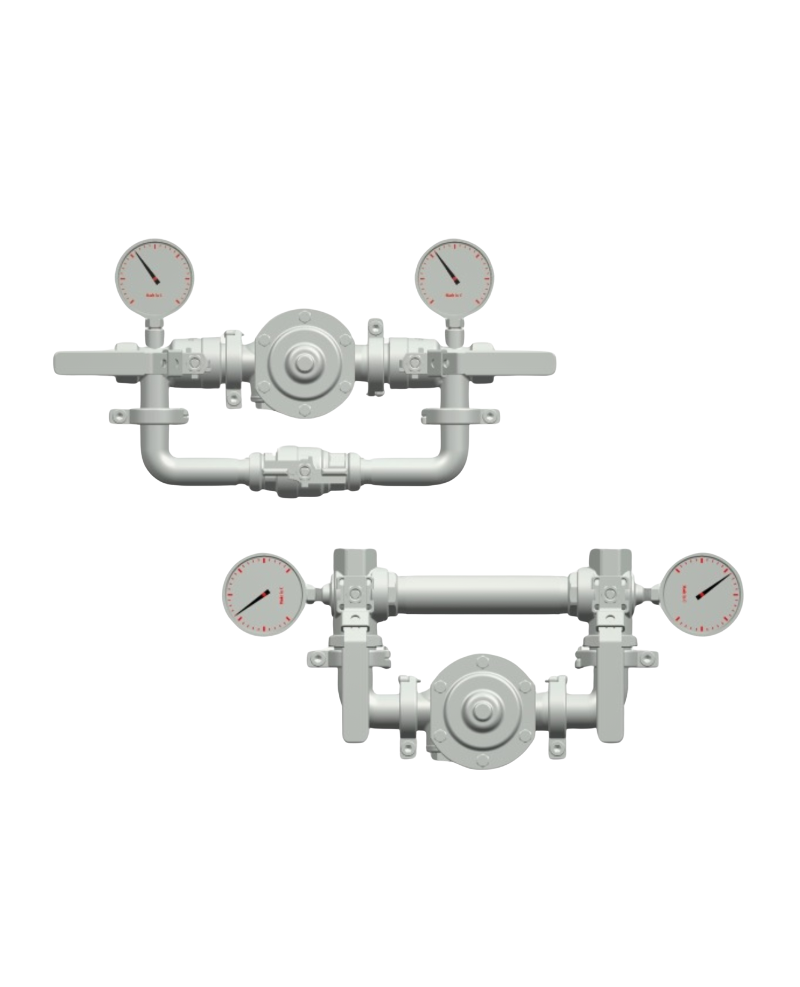

Valtec_Pressure Reducing Valve Set (Threaded) (By-Pass / Straight-Through)

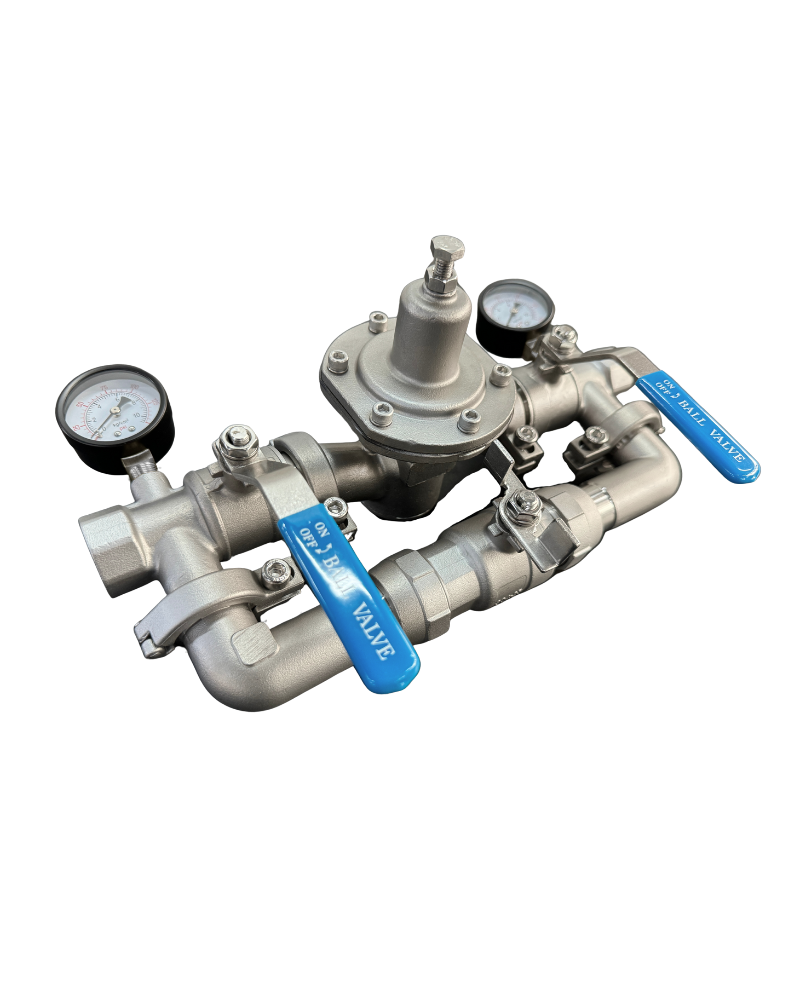

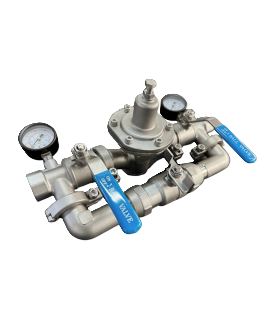

Valtec_Pressure Reducing Valve Set (Threaded) (By-Pass)

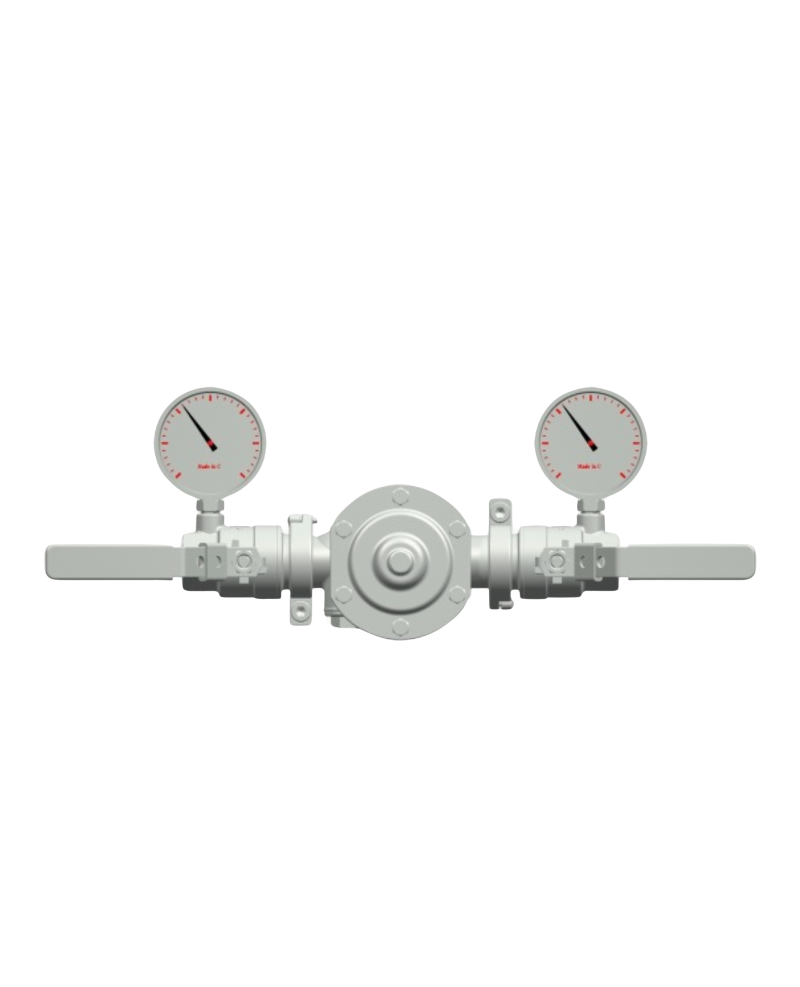

Valtec_Pressure Reducing Valve Set (Threaded) (Straight-Through)
Product Name : Pressure Reducing Valve Set (Threaded) (By-Pass / Straight-Through)
Product Description

PRV SET (Threaded) TYPE

Welcome to contact us for the technical data sheet.


SIZE:

  • 3/4" ~ 2"

TYPE:

  • Threaded: By-Pass / Straight-Through
  • Shut-off Ball Valve / 3 way Ball Valve (T port ball)

Pressure Reducing Range: 1 ~ 6 Kgf / cm2

Max. Operating Pressure: 16 Kgf / cm2

Testing Pressure (Valve Body): 24 Kgf / cm2

Body Material: Stainless Steel

Add to Inquiry
Bypass Types
  • Enhances control over pressure and flow, making it suitable for complex systems that require stable operation under varying conditions.
  • During on-site maintenance and disassembly of the pressure reducing valve, the by-pass valve set allows the system to continue operating without the need for shutdown.
Straight-Through Types
  • Provides a simpler, direct pressure relief solution, ideal for straightforward applications without requiring additional flow management.
  • Pressure Range: 4 ~ 10 Kgf / cm2
  • Flanged J10K: By-Pass Butterfly Valve / Knife Gate Valve / Y-Strainer / Ball Valve
