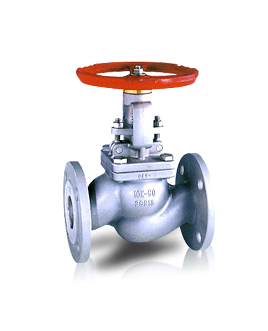

FLANGED END GLOBE VALVE

FLANGED END GLOBE VALVE
Product Name : FLANGED END GLOBE VALVE
Product Description

10K/ 150LB GLOBE VALVE

SIZE: 1/2"~12"

FEATURES:

  • FACE TO FACE DIMENSION:JIS B2002 / ANSI B16.10
  • END FLANGE DIMENSION:JIS B2239 / ANSI B16.5
  • DESIGN:ANSI B16.34
  • TEST:API 598
  • INVESTMENT CASTING BODY :
    ASTM-A351-CF8M,
    ASTM-A351-CF8,
    ASTM-A216-WCB

OPTION:

  • RATING JIS20K/300LBS, DIN PN16
Add to Inquiry
Product Introduction

TEST PRESSURE

SHELL(BY HYDRAULIC) 450PSI
32kg/cm2
SEAT BY HYDRAULIC 315PSI
22kg/cm2
PNEUMATIC 80PSI
6kg/cm2
