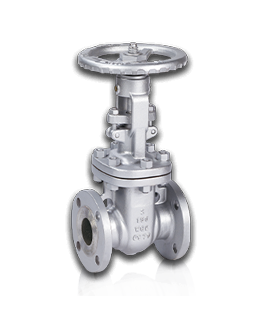

Product Name : GATE VALVE CLASS 150 CAST STEEL
Product Description

GATE VALVE CLASS 150 CAST STEEL

SIZE: 2"~24"

FEATURES:

  • FACE TO FACE DIMENSIONS:ANSI B16.10
  • END FLANGE DIMENSIONS:ANSI B16.5
  • BASIC DESIGN:API 600
  • TEST STANDARD:API 598

OPTION:

  • CLASS 300/600
  • OTHER TRIM IS AVAILABLE
Add to Inquiry

UNIT:mm

SIZEΦAΦBΦCTfLn-Φ
16" 597 540 470 37 1.6 406 16-Φ29
18" 635 578 533 40 1.6 432 16-Φ32
20" 699 635 584 43 1.6 457 20-Φ32
24" 813 749.5 692 48 1.6 508 20-Φ35


NOPARTSMATERIALQ'TY
1 BODY WCB 1
2 SEATRING A105+13CR FACE 2
3 WEDGE WCB+13CR FACE 1
4 STEM 13CR 1
5 GASKET 304+GRAPHITE 1
6 BONNET WCB 1
7 BONNET BOLT A193-B7/2H 1 SET
8 BACK SEAT 13CR 1
9 GLAND PACKING GRAPHITE 6
10 GLAND 13CR 1
11 GLAND FLANGE CARBON STEEL 1
12 GLAND BOLT/NUT A193-B7/A 194-2H 2
13 BOLT / NUT A193-B7/2H 1 SET
14 GEAR CASE STEEL 1
