DEADMAN HANDLE (2-PC BALL VALVE, Flanged)

Valtec_Deadman Handle_V-2FH
Valtec_Deadman Handle
Product Name : DEADMAN HANDLE (2-PC BALL VALVE, Flanged)
Product Description

V-2FH TYPE

Welcome to contact us for the technical data sheet.

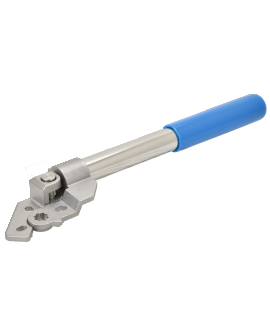

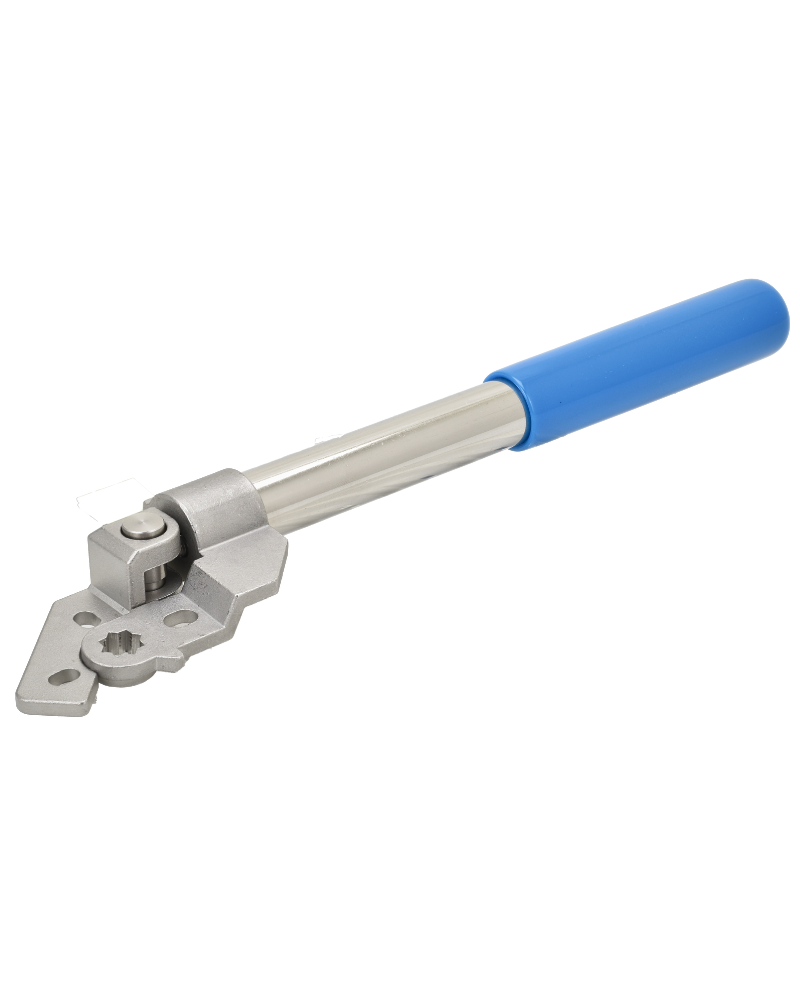

DEADMAN HANDLE | DIRECT MOUNT ISO 5211


SIZE:

  • 1/2"~2"

END CONNECTION:

  • Flanged: EN1092-1 PN16 / PN40
  • Face to Face: DIN3202 F4 (1/2"~4"), F5 (5"~6")
Add to Inquiry
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
