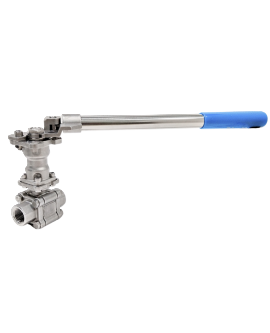

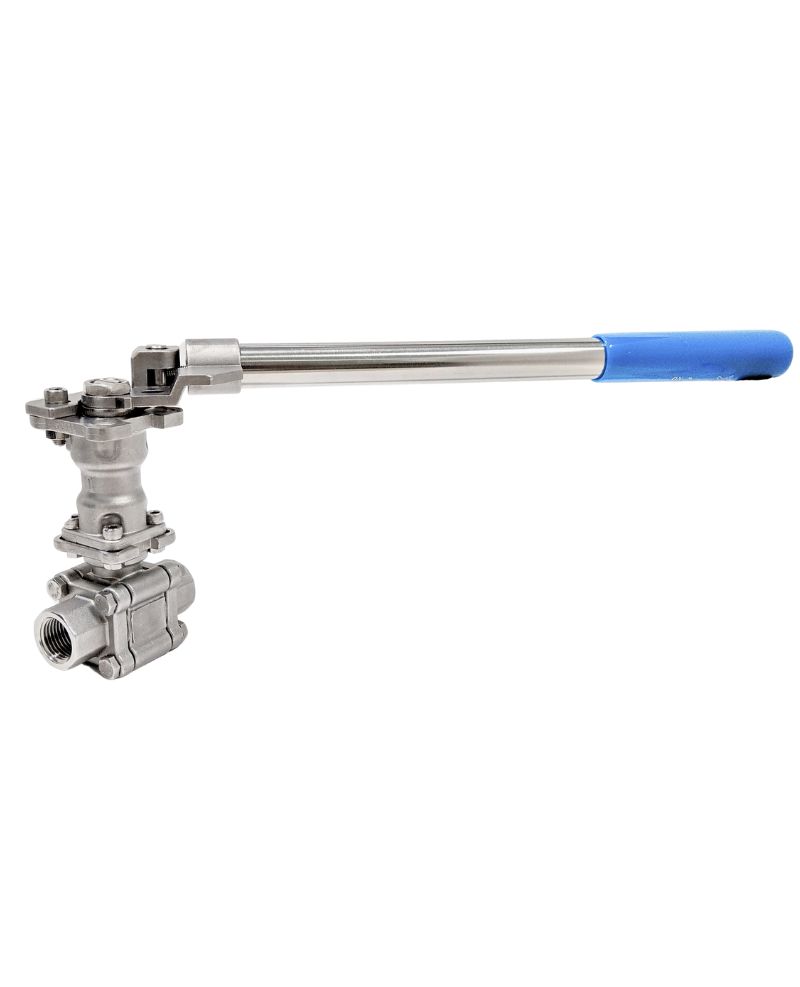

DEADMAN HANDLE (3-PC BALL VALVE, Threaded)

Valtec_Deadman Handle_V-3WMH
Valtec_Deadman Handle
Product Name : DEADMAN HANDLE (3-PC BALL VALVE, Threaded)
Product Description

V-3WMH TYPE

Welcome to contact us for the technical data sheet.


DEADMAN HANDLE | EXTENSION STEM
DIRECT MOUNT ISO 5211


SIZE:

  • 1/4"~2" (3000PSI / PN200)

END CONNECTION:

  • Threaded: ISO 228-1 / G, ISO 7-1 / Rp Rc R, ASME B1.20.1 / NPT, JIS B 0202 / JIS B 0203
  • Socket Weld: EN 12760 / ASME B16.11
  • Butt Weld: EN 12627 / ASME B16.25
Add to Inquiry
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-316L / EN10213 1.4409 / ASTM-A351-CF3M / JIS-SCS16A
  • AISI-304L / EN10213 1.4309 / ASTM-A351-CF3 / JIS-SCS19AA

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
