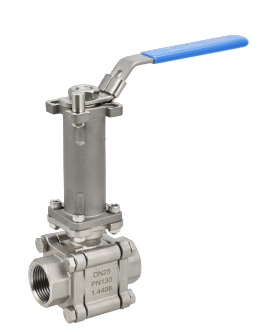

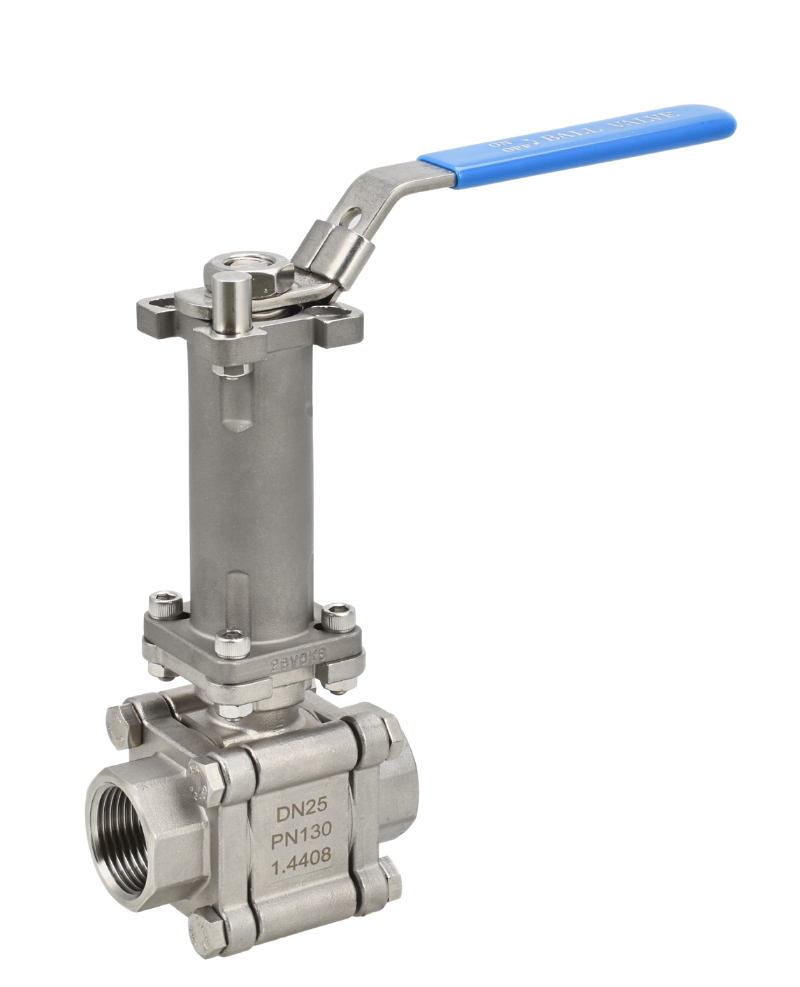

Product Name : EXTENSION STEM 100mm (3-PC BALL VALVE, Threaded)
Product Description

V-3WMH TYPE

Welcome to contact us for the technical data sheet.

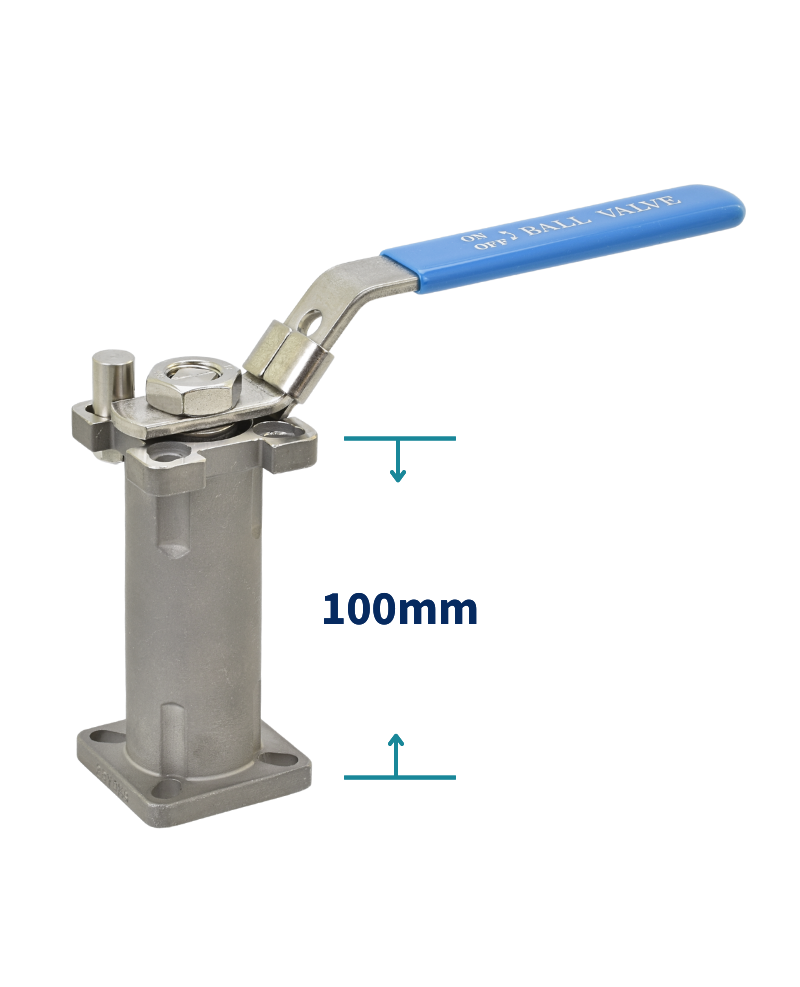

EXTENSION STEM 100mm | ISO 5211


BALL VALVE SIZE:

  • 1/4"~2" (3000PSI / PN200)
  • 2-1/2"~4" (2000PSI / PN130)

BALL VALVE END CONNECTION:

  • Threaded:
    ISO 228-1 / JIS B 0202 / G ;
    ISO 7-1 / JIS B 0203 / Rp Rc R ;
    ASME B1.20.1 / NPT
  • Socket Weld: EN 12760 / ASME B16.11
  • Butt Weld: EN 12627 / ASME B16.25
Add to Inquiry
MATERIALS
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.

STANDARDS / TESTING
All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
