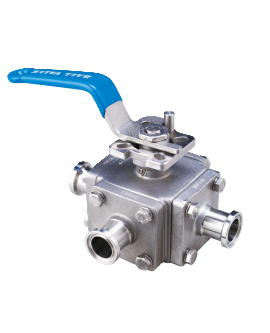

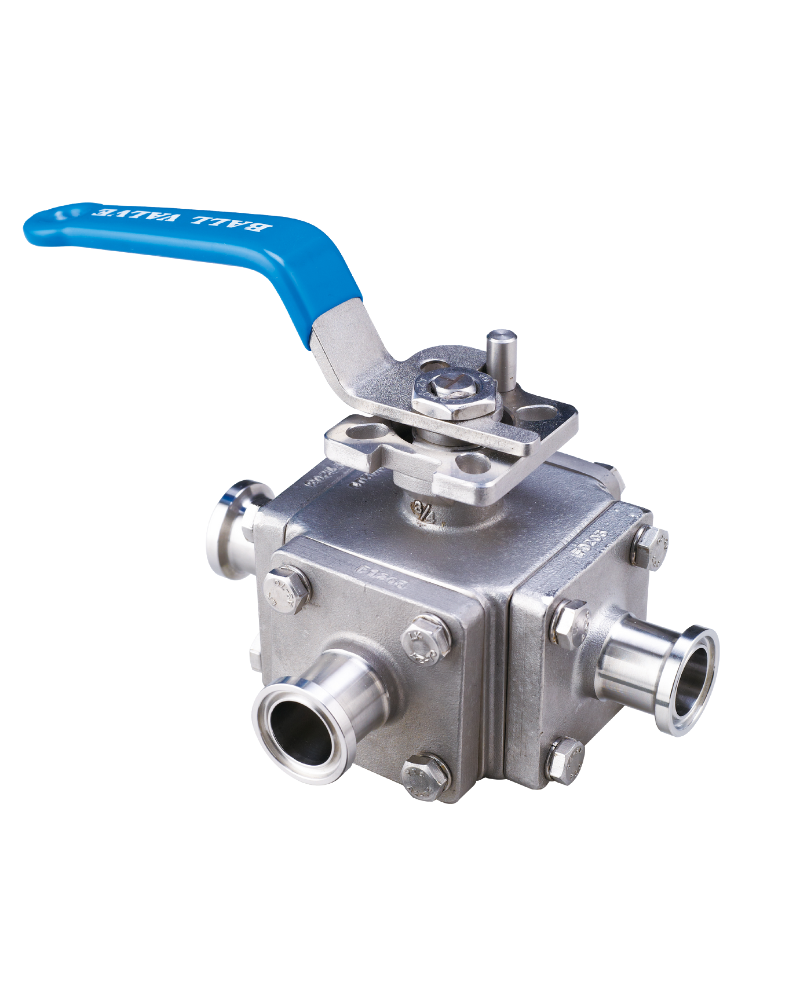

3-WAY SANITARY BALL VALVE

Valtec_V-3WAY-SAN_Sanitary Multiport Ball Valve
Product Name : 3-WAY SANITARY BALL VALVE
Product Description

V-3WAY-SAN TYPE

Welcome to contact us for the technical data sheet.


Hygienic & Sanitary Applications | Pharmaceutical, Food & Beverage, Winery


SIZE:

  • 1/2" ~ 2" 1000 CWP (PN 63)
  • 2 1/2" ~ 4" 800 CWP (PN 40)
Add to Inquiry
  • Multiport design (3-way): L port, T port
  • Direct mounting pad ISO 5211
  • Blow-out proof stem
  • Investment casting body and cap
  • Clamp end, weld end: 3A standard
  • Cavity filled seat
  • Anti-static device
  • Inside polished ra ≤ 0.4 µm
  • Square stem
  • Butt Weld end cap: AISI-316L
  • Body: AISI-316L, AISI-304
  • 4-Way design: L port, T port, X port
  • RJT male end
  • Food and Beverage Industry
    • Dairy processing
    • Beverage production
    • Brewing and distilling
    • Food processing and packaging
  • Pharmaceutical and Biotech Industry
    • Pharmaceutical manufacturing
    • Biotech research and production
    • Cosmetic production
  • Water purification systems
  • Clean room environments
Stainless Steel
  • AISI-316L / EN10213 1.4409 / ASTM-351-CF3M / JIS-SCS16A
  • AISI-316   / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304   / EN10213 1.4308 / ASTM-351-CF8   / JIS-SCS13A

Upon request, we can provide alternative materials.
