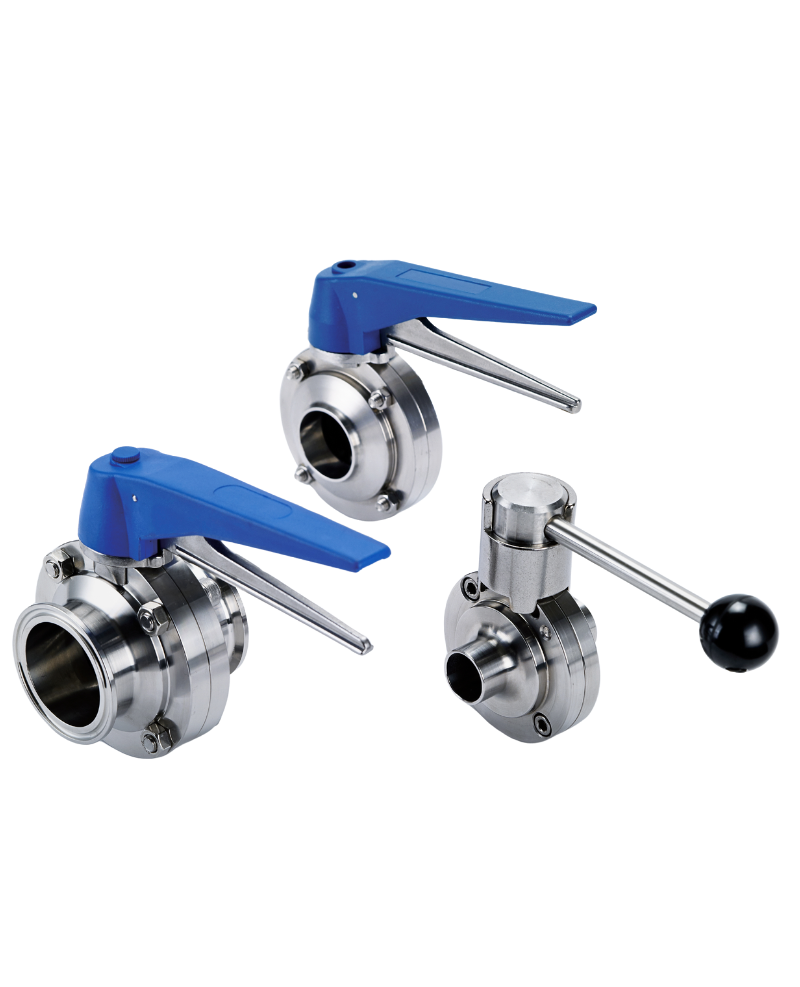

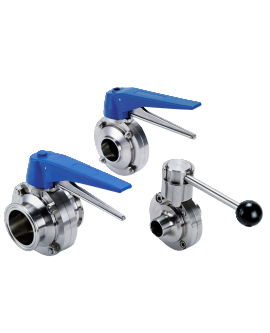

Product Name : SANITARY BUTTERFLY VALVE
Product Description

SANITARY BUTTERFLY VALVE

Welcome to contact us for the technical data sheet.


Hygienic & Sanitary Applications | Pharmaceutical, Food & Beverage, Winery


SIZE:

  • 1" ~ 4"

END CONNECTION (3A, SMS, BS, DIN, IDF, RJT)

  • Clamp End
  • Butt Weld End
  • Male/Male End
  • Low torque
  • Disc: Out from full machined, high polished.
  • Ra less 0.6 um. 9.5mm and 8x12mm, 12x12mm head for USA and Europe required.
  • Handle: Different Nylon re-force and Stainless Steel handle Gripper, Pull, Press type
    • From 2 positions to 12 positions upon your request
  • Electric polished and PTFE coating
  • Actuator operation
  • Food and Beverage Industry
    • Dairy processing
    • Beverage production
    • Brewing and distilling
    • Food processing and packaging
  • Pharmaceutical and Biotech Industry
    • Pharmaceutical manufacturing
    • Biotech research and production
    • Cosmetic production
  • Water purification systems
  • Clean room environments
Stainless Steel
  • AISI-316L / EN10213 1.4408 / ASTM-351-CF3M / JIS-SCS16A
  • AISI-316  / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304  / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table
