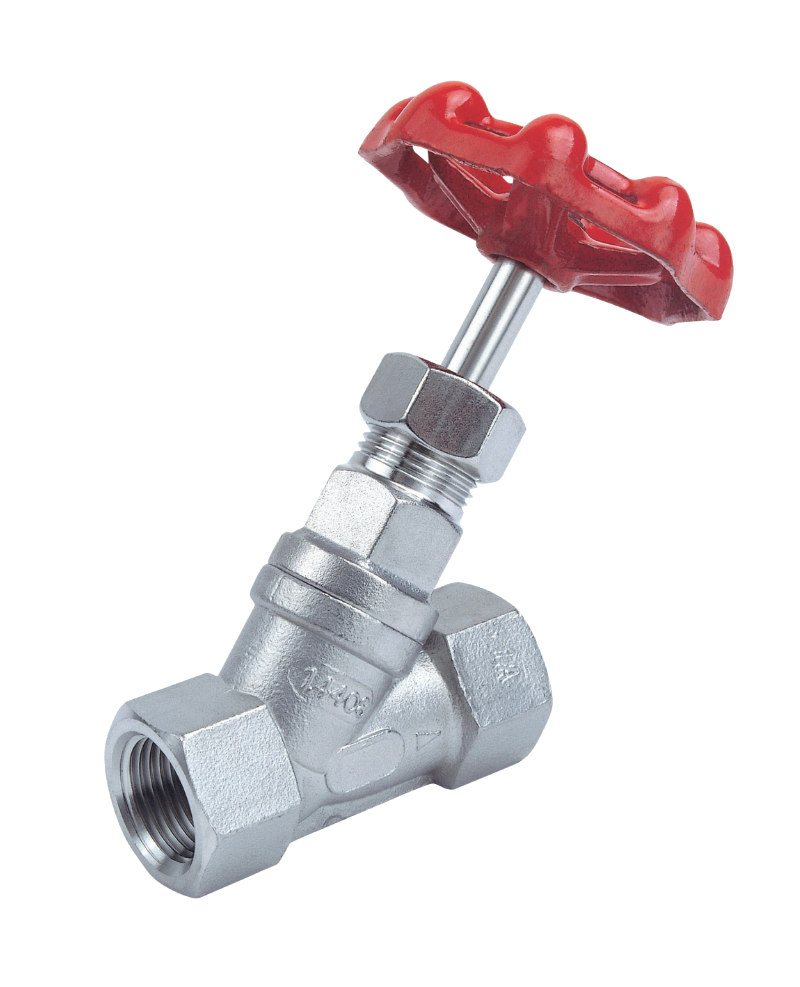

SHUT-OFF VALVE, PN40 (Threaded)

Valtec_Shut-off Valve
Product Name : SHUT-OFF VALVE, PN40 (Threaded)
Product Description

VT-S-PN40 TYPE

Welcome to contact us for the technical data sheet.


SIZE:

  • 1/4"~2"

END CONNECTION:

  • Threaded: ANSI B2.1, BS21, DIN 259/2999, ISO 228
  • End to End: DIN 3202 Part 4 M8 series (PN40)
Add to Inquiry
  • Max. Working Temperature 230°C
  • Investment casting body
  • PN40 Rating
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
